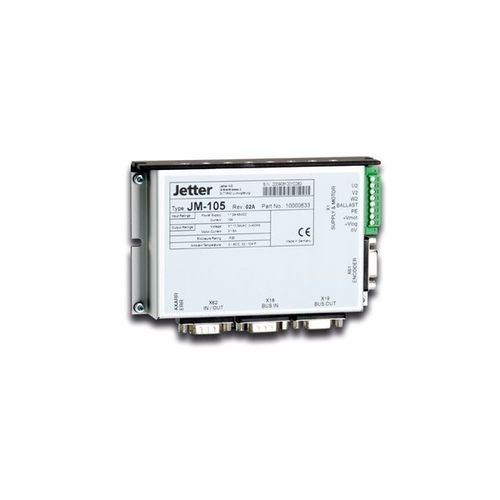

DC servo-amplifier JetMove 105 synchronousasynchronousstepper
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- asynchronous, synchronous, stepper, 2-phase
- Voltage
- 48 V, 12 V
- Other characteristics
- compact
- Intensity
5 A
- Power
Max.: 384 W
(1,310.26 BTU/h)Min.: 0 W
(0 BTU/h)- Output power
240 kW
(326.30908 hp)
Description
The JetMove 105 has especially been designed for the voltage range from DC 12 to 48 V (up to 384 W). This servo amplifier supports all major motor types and offers space-saving installation due to its compact design.
Features
DC 12 … 48 V
5 A
Supported motor types:
- Synchronous and asynchronous motors
- 2-phase stepper motors
- Direct drives
- DC and BDC motors
- Linear motors
Great number of integrated technological and special motion functions:
- Electronic gearbox
- Table function/cam disc
- Dynamically changeable tables
- Synchronizing of position and velocity
- Print-mark correction
- Winding function
- Flying saw
- Cross cutter
- Torque/force control
