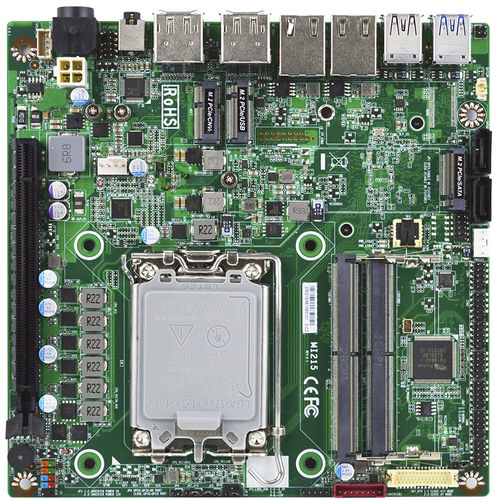

Intel H610/H610E Chipset support LGA 1700 socket for the 14th/13th/12th Gen (Raptor Lake-S/Alder Lake-S) i9/i7/i5/i3 processor, support DDR5 up to 96GB, Support Max. 65W TDPs under 180A
Features
1. Intel® 14th/13th/12th LGA1700 Socket Processor (Max. 65W TDPs under 180A)
2. 2* DDR5 4800MHz SO-DIMM up to 96GB
3. 2* 10/100/1000/2500 Base-T Ethernet Ports
4. 1* M.2 M-key, 1* M.2 E-key supports CNVio, 1* M.2 B-key supports 4G/5G module, Single PCI Express x16(Gen.4) support Max. 70W
5. 2* HDMI, 2* DP, 1* LVDS/eDP support Triple displays
6. 2* RS232/422/485, 4* RS232, 2* USB3.2(Gen.2), 1* USB3.2 (Gen.1), 3* USB2.0
7. 2* SATAIII ports up to 6Gb/s
8. Support JetBIOS SW back up tool
9. Support onboard TPM2.0 option (Only MI215H6102 Series)
10. Support wide voltage 12V~36V DC-in
11. Support RVP, OCP, and OVP design
Market Segments Supported
√ Automation
√ Digital Signage
√ KIOSK
√ Intelligent Home
√ IOT Solution
Environment
Operating Temperature: 0 ~ 60° C (with 0.7m/s air flow)
Storage Temperature : -20 ~ 85°C
Humidity: 10% ~ 90% RH @40°C (non-condensing)
