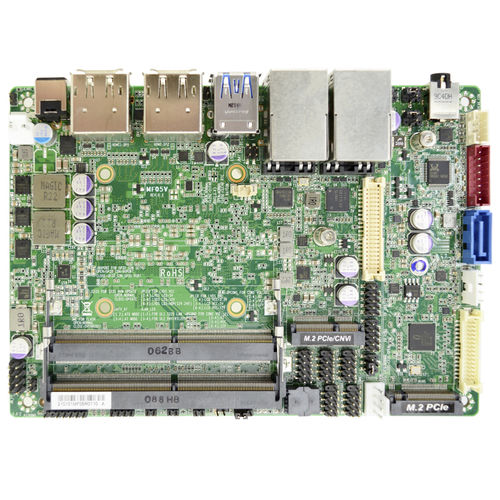

3.5" motherboard MF05V Series

11th Generation Intel® Core™11th Gen Intel® Tiger Lake-UP3 i5-1145G4EIntel® Core™ i5-1135G7

11th Gen. Intel® Tiger Lake-UP3 SoC Processors, support up to 4* independent 4K HDR Displays or 1* 8K SDR Displays, M.2 PCIE 4.0 x4 supports NVME, 4* COM, 4* USB3.2(Gen2), 1* 2.5GbE, 1* GbE 1. Intel® Tiger Lake-UP3 SoC Processor (TDP 12~28W) 2. 2* DDR4-3200MHz SO-DIMM up to 64GB 3. 1* Intel® i219-LM 1.0GbE, 1* Intel i225-V 2.5GbE 4. 2* HDMI, 2* DisplayPort, 1* eDP, 1* LVDS 5. 4* COM (COM1/COM2 support RS232/422/485), 4* USB3.2 (Gen.2), 4* USB2.0 6. 1* M.2 M-key 2242/2280, PCIe 4.0 x4 interface support NVME 7. 1* M.2 E-key 2230, USB2.0/PCIe x1 interface support CNVi 8. 1* SATAIII (6Gb/s) 9. Onboard TPM 2.0 (option) 10. DC-in 12-24V Market Segments Supported √ Digital Signage √ Industrial PCs √ Edge Computing √ Factory Automation √ AI Inference √ Retail Solution Environment Operating Temperature : 0 ~ 60°C Storage Temperature : -20 ~ 85°C Humidity: 10% ~ 90% RH @40°C (non-condensing)
