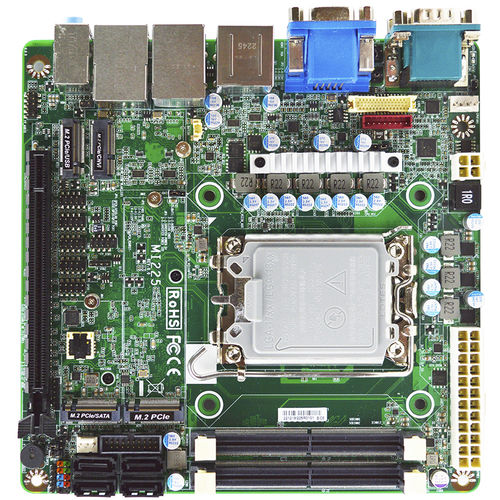

Mini-ITX motherboard MI225Q6700 Series

Intel® Celeron®Intel® Core i3Intel® Core i5

Mini-ITX Embedded Motherboard, 14th/13th/12th Gen (Raptor Lake-S/Alder Lake-S) Intel® LGA1700 Socket processor, Support Max. 65W TDPs under 180A, Support two DDR5 up to 96GB, four M.2 slot and one PCIe x16 slot Features 1. Intel® 14th/13th/12th LGA1700 Socket Processor (Max. 65W TDPs under 180A) 2. Intel® Q670E Chipset 3. 2* DDR5 4800MHz SO-DIMM up to 96GB 4. 1* 10/100/1000 Base-TX & 1* 10/100/1000/ 2500 Base-TX Ethernet Ports 5. 1* HDMI, 1* DP, 1* VGA, 1* LVDS/eDP 6. 6* COM (COM1 support RS232/422/485) 7. 6* USB3.2 Gen.2, 2* USB3.2 Gen.1, 3* USB2.0 8. 1* PCIe Gen.4 x16 slot, 1*M.2 M-Key (2280) support NVMe, 1*M.2 M-Key (2242) support NVMe, 1*M.2 E-Key (2230) support CNVi, 1*M.2 B-key (3042) support 4G Module 9. 4* SATAIII (6Gb/s) support RAID 0,1,5,10 10. Support JetBIOS SW back up tool 11. Support Onboard TPM2.0 (MI225Q6702 only) Market Segments Supported √ Edge Computing √ Digital Signage √ Industrial PCs √ Factory Automation √ Public Sector √ Digital Security √ Surveillance application Environment Operating Temperature : 0 ~ 60° C (with 0.7m/s air flow) Storage Temperature : -20 ~ 85°C Humidity: 10% ~ 90% RH @40°C (non-condensing)
