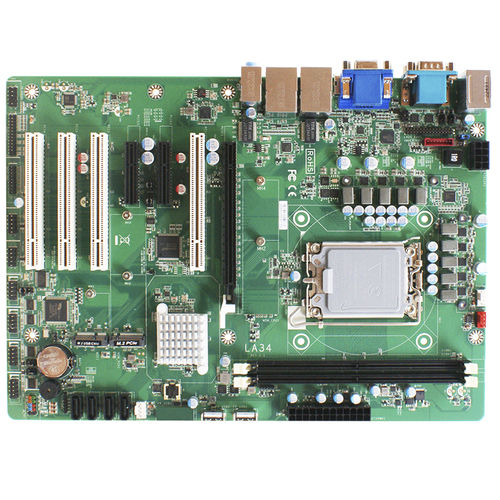

ATX motherboard LA34-H6100 SeriesIntel® Celeron®Intel® PentiumIntel® Core i3
Add to favorites
Compare this product
Characteristics
- Format
- ATX
- Processor
- Intel® Celeron®, Intel® Pentium, Intel® Core i3, Intel® Core i5, Intel® Core i7, 12th Generation Intel® Core™, 13th Generation Intel® Core™, Intel® Core™ i9
- Chipset
- Intel® H610, Intel® H610E
- Memory
- DDR5 UDIMM
- Extension slot
- SATA3, M.2, PCI Express
- Socket
- LGA 1700
- Applications
- industrial, embedded
- Operating system
- Linux, Windows 10, Windows 11
- Memory frequency
- DDR5 4800 MHz
- Connectivity
- VGA, 2.5 GbE, LVDS, USB 2.0, HDMI, USB 3.2, RS-232, DisplayPort, RS-485, RS-422, eDP, PS2
Description
ATX size with 12th/13th Gen. LGA1700 Socket Processor, Intel® Alder lake-S H610/H610E chipset, DDR5 up to 96GB, 1* M.2 M-key, 1* M.2 E-key, support 3 display
1. Intel® 12th/13th LGA1700 Socket Processor (Max.125W TDP)
2. Intel® Alder Lake-S H610/H610E Chip
3. 2* DDR5 4800MHz UDIMM up to 96GB
4. 1* VGA, 1* HDMI, 1* DP, 1* LVDS/EDP(Option)
5. 1* 2.5GbE, 1* GbE
6. 6* COM, 4* USB3.2 (Gen.1), 6* USB2.0, 2* USB2.0 Type-A (Vertical)
7. 1* M.2 M-key (2280, NVMe, PCI-Ex2 Interface), 1* M.2 E-key (2230, CNVi Interface)
8. 1* PCI-Ex16 (Gen.4), 2* PCI-Ex4 (Gen.3), 4* PCI
9. Onboard TPM2.0(Option)
10. ATX Power
Market Segments Supported
√ Digital Signage
Environment
Operating Temperature- 0 ~ 60°C
Storage Temperature- -20 ~ 70°C
Humidity: 10% ~ 90% RH @40°C (non-condensing)
