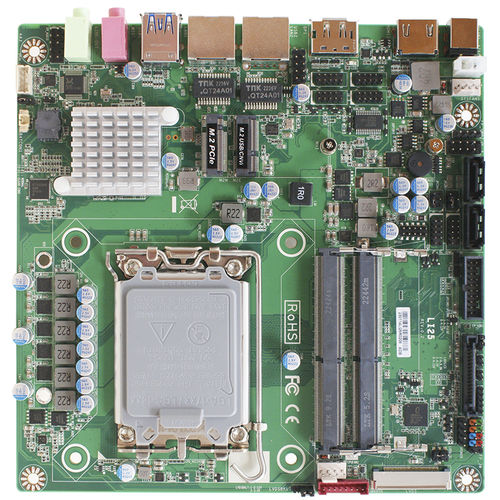

Mini-ITX motherboard LI25-H6100L SeriesIntel® Celeron®Intel® PentiumIntel® Core i3
Add to favorites
Compare this product
Characteristics
- Format
- mini-ITX
- Processor
- Intel® Celeron®, Intel® Pentium, Intel® Core i3, Intel® Core i5, Intel® Core i7, 12th Generation Intel® Core™, 13th Generation Intel® Core™, Intel® Core™ i9
- Chipset
- Intel® H610
- Memory
- DDR4 SO-DIMM
- Extension slot
- SATA3, M.2
- Socket
- LGA 1700
- Applications
- industrial
- Operating system
- Linux, Windows 10, Windows 11
- Memory frequency
- DDR4 3200 MHz
- Connectivity
- HDMI, LVDS, USB 2.0, USB 3.2, GbE, RJ45, RS-232, RS-485, DisplayPort, RS-422, eDP
Description
170x170mm size with 12/13th Intel® Core™ i9/i7/ i5 /i3, Celeron, Pentium® LGA1700 Socket Processor, DDR4 up to 64GB, support 3 display, 2* RJ45, 6* COM
1. Intel® 12/13th LGA1700 Socket Processor (Max. 65W TDP)
2. Intel® Alder Lake-S H610 Chipset
3. 2* DDR4 3200MHz UDIMM up to 64GB
4. 1* HDMI, 1* DP, 1* LVDS or eDP
5. 2* GbE
6. 2* USB3.2 (Gen.2), 2* USB3.2(Gen.1), 5* USB2.0, 6* COM
7. 1* M.2 M-key, 2242/2280(PCI-Ex4), 1* M.2 E-key, 2230, 2* SATAIII (6Gb/s)
8. Onboard TPM2.0 (Option)
9. 19V DC-in
Market Segments Supported
√ Industrial PCs
√ Factory Automation
Environment
Operating Temperature : 0 ~ 60°C
Storage Temperature : -20 ~ 70°C
Humidity: 10% ~ 90% RH @40°C (non-condensing)
