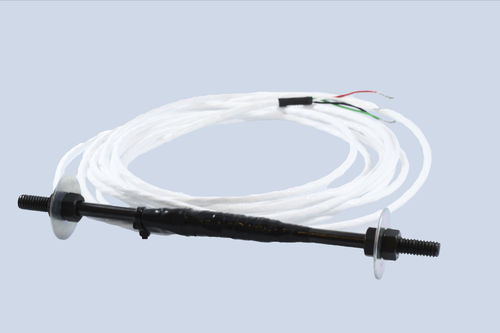

Dynamic strain gage CSG-3000

for concrete

Dynamic concrete strain gages measure axial strain in the concrete under high frequency (dynamic) conditions. Utilizing four active elements of a Wheatstone bridge circuit, this gage compensates for temperature, rejects bending strain (may also be configured to measure bending and reject axial strains), compensates for lead resistance and providing a sensor that is easily adaptable to most data acquisition systems without requiring additional signal conditioning. Because of their low profile design, these sensors can be used in concrete pavements, columns, walls, bridge elements or wherever dynamic strains need to be measured. Each sensor is provided with end washers, nuts and are individually calibrated and supplied with fabrication Quality-Control documentation.
