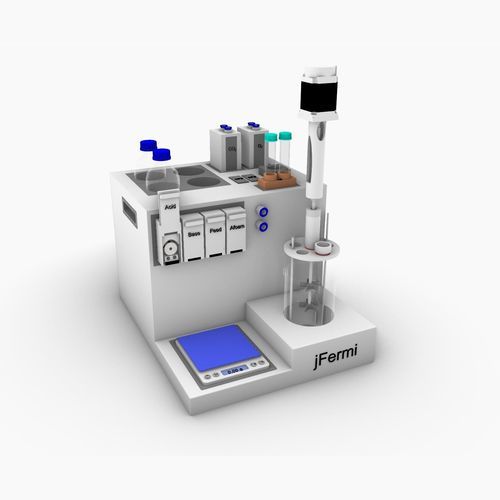

Batch bioreactor / fermentor 4All

laboratoryprocessfor the pharmaceutical industry

• Batch Fermentation • Fed-batch Fermentation • Continuous Fermentation • Fully Web Based • Mobile Compatible • Plug & Play Sensors • Fully Customizable • Ethernet (LAN) • USB 2.0 • Modbus RTU With 0.5L – 1L vessels. Easily configurable and extendable with plug-and-play sensors. Web based, mobile compatible Graphical User Interface. Can be connected into blocks without limitations. Supports M2M APIs for controlling the fermentation process. FEATURES • Batch/Fed-batch/Continuous fermentation • Reporting • Blockable • M2M interface • XML • JSON • Web Interface • Mobile Compatible • Sensors • pH (Analog /Digital) • Dissolved Oxygen (galvanic/polarographic/optical) • Temperature (Pt1000/NTC) • Off gas (CO2, O2) • Controls • Feed/Acid/Base/Antifoam pumps (0.7-20 mL/h) • Air flow (MFC 0-500 mL/Air pump) • Heating/ Cooling (Peltier, 10-50 oC) • Stirring (0-2000 rpm)
