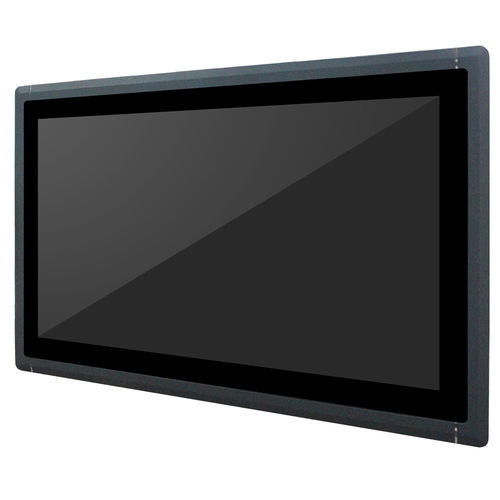

TFT LCD panel PC ALAD-K2120Tcapacitive touch screen5-wire resistive touch screenLED backlight
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, capacitive touch screen, 5-wire resistive touch screen, LED backlight
- Display size
- 21.5"
- Resolution
- 1920 x 1080
- Processor
- Intel® Skylake Processor, Intel® Kaby Lake Processor
- Operating system
- Linux, Windows 10, Windows 7, Windows 8.1
- Construction
- fanless, aluminum frame
- Mounting
- VESA mounting
- Applications
- industrial
- Protection level
- IP65
- Other characteristics
- all-in-one
Description
[Specification]
1.Structure: Aluminum die-casting front bezel and chassis, fin-shaped radiator shell
2.Mounting: Panel mounting, VESA 100*100mm and 75mm*75mm
3.Dimension: (W*H*D):546.9*344.7*64.1mm; mounting cut out(W*H):537.5*335.3mm
4.Net weight:8.15KG
5.Type of LCD: 21.5''TFT LED
6.Resolution of LCD:1920(H)*1080(V)
7.Type of Touch: Projected capacitive touch
8.Certification/EMC: CE/FCC Class A
[Key features]
Aluminum die casting chassis, fanless design
21.5 LED TFT LCD, capacitive touch
Intel® Skylake U/Kabylake-U CPU
1*DDR4 2133 SODIMM, Max 16GB
1*Mini PCIe, Optional 1*PCI/PCIeX1
4*COM, 2*LAN, 4*USB3.0
2.5 HDD Bay, 1*M.2
ATX button&remote button
DC 9～36V power input
[Applications]
MES and machines HMI terminal
[Certification]
CE/FCC Class A
