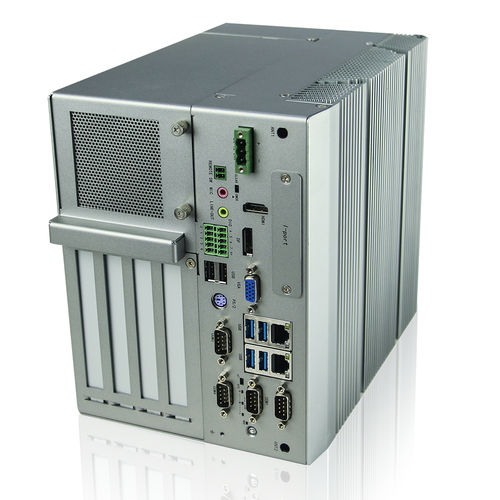

Embedded PC KMDA-3921

Intel® Celeron®Intel® PentiumIntel® Skylake Processor

[Specification] 1.Structure:Aluminum chassis, SGCC frame 2.Color:Silver grey 3.Net weight:5.58Kg 4.Mounting:Desktop Mounting 5.Dimension:(W*H*D): 220*250*172mm 6.Operating temperature: -20°C~65°C – Fanless, 35W CPU with wide operating temp. SSD, airflow -10°C~55°C – Fanless, 35W CPU with HDD, airflow 7.Storage temperature:-40°C~85°C 8.Storage Humidity:10~90%@40°C, Non-condensing 9.Vibration: 5grms/5~500Hz/random/in working(SSD); 1grms/5~500Hz/random/in working(HDD) 11.Shock: 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD） 11.Certification/EMC:CE/FCC Class B [Key features] Aluminum chassis, SGCC frame Intel® Kabylake-S/Skylake-S CPU 2*DDR4 2400/2133MHz SODIMM, Up to 32GB DP+HDMI+VGA, Optional 3 independent displays 2*LAN, 4*USB3.0, 3*USB2.0, 4*COM,8-bit DIO 1*PCIe X16+1*PCIeX1+2*PCI expansion 1*Mini PCIe(PCIe+USB),1*M.2 2242 B-Key 1*mSATA, 2*2.5" SATA, suppprtRaid0,1(Q170) Support Intel® iVpro and TPM2.0 DC 12~24V Wide Power Input [Applications] Intelligent AI, Video Security and Machine Vision [Certification] CE/FCC Class B
