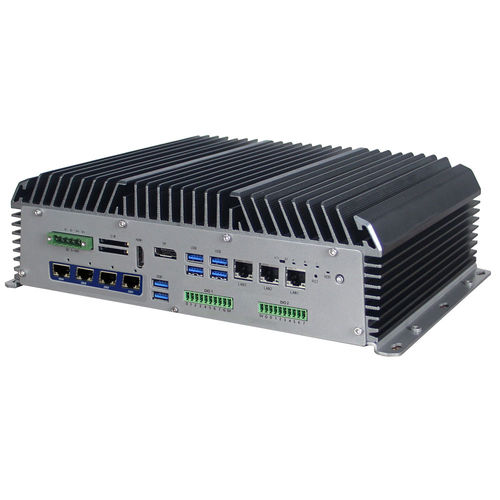

Embedded PC KMDA-3601

wall-mountedIntel® Celeron®Intel® Pentium

[Specification] 1.Structure:Large U form aluminum chassis, SGCC frame 2.Color:Silver and Grey 3.Net weight:4.65kg 4.Mounting:Desktop mounting 5.Dimension:(W*H*D)284*222*84.7mm 6.Operating temperature: -20°C～65°C – Fanless, 35W CPU with wide operating temp. SSD, airflow -10°C～55°C – Fanless, 35W CPU with HDD, airflow 7.Storage temperature:-40°C~85°C 8.Storage Humidity:10~90%@40°C, Non-condensing 9.Vibration: 5 grms/5~500Hz/random/in working(SSD); 1 grms/5~500Hz/random/in working(HDD) 10.Shock: 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD） 11.Certification/EMC:CE/FCC Class B [Key features] Large aluminum chassis, fanless design Intel® Kabylake-S/Skylake-S Core I3/I5/I7 CPU 2*DDR4 2133/2400MHz SODIMM, Up to 32GB 1*DP(4K), 1*HDMI(4K) and 1*VGA 3*LAN, 4*POE Opt. 8/11*LAN, 6*USB3.0, 3*USB2.0 4*COM, 16 bit Iso. DIO, Audio out and Mic 2*Mini PCIe(PCIe+USB),1*M.2 2242 B-Key 1*mSATA, 2*2.5" SATA, suppprtRaid0,1 Support Intel® iVpro and TPM2.0 DC 6~48V Wide Power Input [Applications] Intelligent Transportation(ITS) Video Security Machine Vision [Certification] CE/FCC Class B
