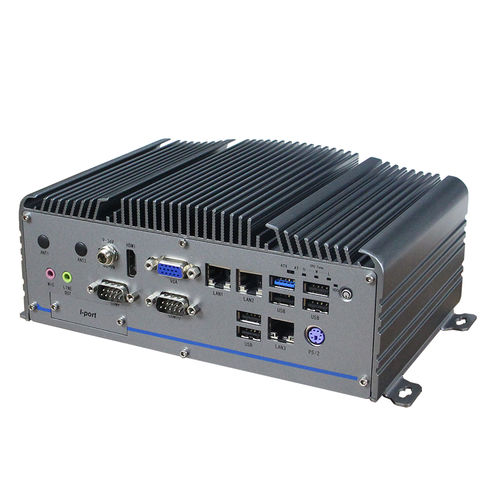

Embedded PC KMDA-2702

VESA mountingIntel® Celeron J1900SATA

[Specification] 1.Structure:U form Aluminum Chassis, SGCC frame 2.Color:Silver 3.Net weight:2.60Kg 4.Mounting:Desktop mounting 5.Dimension:(W*H*D)210*144*82.7mm 6.Operating temperature: -20°C~70°C – Fanless with wide operating temp. SSD, Airflow -10°C~55°C – Fanless with HDD, Airflow 7.Storage temperature:-40°C~85°C 8.Storage Humidity:10~90%@40°C, Non-condensing 9.Vibration: 5 grms/5~500Hz/random/in working(SSD); 1 grms/5~500Hz/random/in working(HDD) 10.Shock: 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD） 11.Certification/EMC:CE/FCC Class A [Key features] Universal Aluminum Chassis, Fanless Design Intel Baytrail Celeron J1900 2.0-2.42G CPU 1*DDR3L 1333 MHz SODIMM , Up to 8GB 3*Intel I211-AT PCIe Gig LAN 1*HDMI and 1*VGA, Audio Line out and Mic 1*USB3.0, 6*USB2.0,10*COM, 16 bit DIO 1*Mini PCIe(PCIe+USB),1*Mini PCIe(SATA+USB) 1*2.5" SATA2 Bay and 1*mSATA DC 9~36V Wide Power Input [Applications] Environmental protection and new energy application [Certification] CE/FCC Class A
