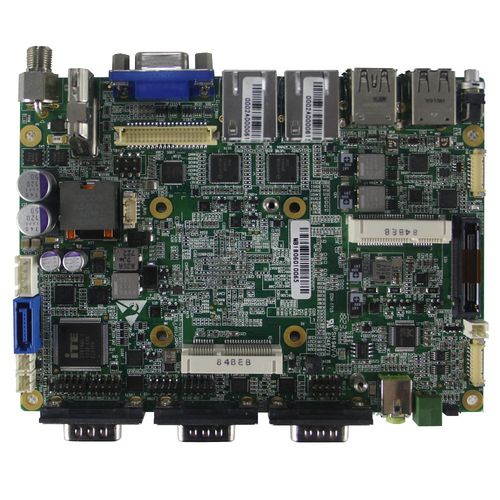

ATX single-board computer ECM-I715Intel Baytrail J1800/1900SATAMini PCIe
Add to favorites
Compare this product
Characteristics
- Form factor
- ATX
- Processor
- Intel Baytrail J1800/1900
- Extension slot
- SATA, Mini PCIe
- Connectivity
- USB 2.0, USB 3.0
- Other characteristics
- embedded, industrial
Description
Intel®Celeron J1900 CPU, 2*LAN, 5*USB, 4*COM, three displays, Mini PCIe and EIO， DC-IN 9~36V,CPU Temp.show in LED. Easy to structured product design.
Intel® Baytrail Celeron J1900 2.0-2.42G CPU
1*DDR3L 1333MHz SODIMM, Up to 8GB
2*Intel® I211-AT PCIe Gig LAN
1*HDMI, 1*VGA and 1*48 bit LVDS
1*USB3.0, 5*USB2.0,4*COM, 8 bit DIO
Realtek ALC662VD High Definition Audio , 2*3W speakers
1*Mini PCIe(PCIeX1+USB), EIO Express bus
1*SATA2 3.0Gbps, 1*mSATA
DC 9~36V wide power input
VIDEO
Catalogs
ECM-I715
2 Pages
