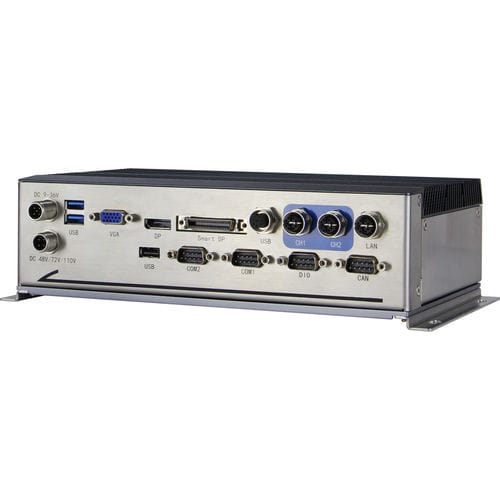

Embedded PC SIGM-2650wall-mountedIntel® Apollo LakeMini PCIe
Add to favorites
Compare this product
Characteristics
- Configuration
- embedded, wall-mounted
- Processor
- Intel® Apollo Lake
- Ports
- Mini PCIe, SATA, CAN bus, USB 3.0, serial port, USB 2.0, Ethernet, RS-232, WiFi, 4G, gigabit Ethernet, RS-485, VGA, GPS, DDR4 SO-DIMM, HDMI
- Operating system
- Linux, Windows 10
- Domain
- for harsh environments, for railway applications, for industrial vehicles
- Protection level
- ultra-rugged
- Other characteristics
- fanless, PoE
Description
[Specification]
1.Color:Silver & Grey
2.Net weight:3.1Kg
3.Mounting:Desktop Mounting
4.Dimension:(W*H*D)：250*154*72mm
5.Operating temperature:EN50155 TX: -40~70℃(Operating 10min in 85℃)
6.Storage temperature:-40°C~85°C
7.Storage Humidity:10~90%@40°C, Non-condensing
8.Vibration:MIL-STD-801G, EN50155
9.Shock:MIL-STD-801G, EN50155
10.Certification/EMC:EN50155, E-Mark, CE/FCC Class B
[Key features]
Aluminum chasiss, Fanless design
Intel® Apollo Lake E3950 CPU
2-Ch DDR3L, On-board+SODIMM, up to 8GB
1*DP, 1*VGA, 1*Smart Display, three displays
3*GbE LAN(two with POE function), 5*USB
2*Iso.COM, 8-bit Iso. DIO, optional 2*CAN
4*Mini PCIe(opt. 1*mSATA), support GPS/WiFi/4G
EN50155, E-Mark certification
TPM2.0, DC 9~36V, ITPS power management
Optional Railway power DC 48/72/110V
[Applications]
Road vehicle, Railway vehicle applications
[Certification]
EN50155, E-Mark, CE/FCC Class B
VIDEO
Catalogs
SIGM-2650
2 Pages
