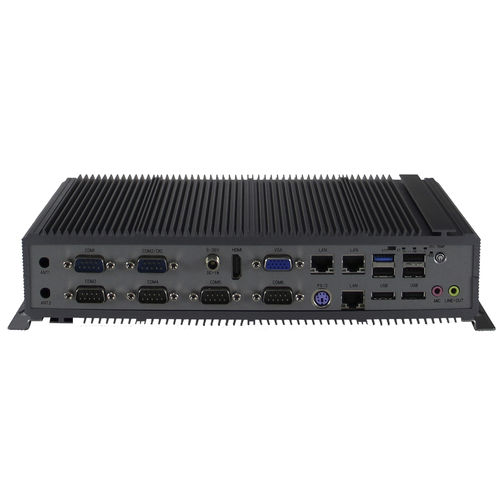

Embedded PC SCC-3116

Intel® Celeron J1900SATAMini PCIe

[Specification] 1.Structure:aluminum chassis, SGCC frame 2.Color:Silver 3.Net weight: TBD 4.Mounting:Desktop Mounting 5.Dimension:(W*H*D): 268*160*57.6mm 6.Operating temperature: -20°C~65°C – Fanless with wide operating temp. SSD, Airflow -10°C~55°C – Fanless with HDD, Airflow 7.Storage temperature:-40°C~85°C 8.Storage Humidity:10~90%@40°C, Non-condensing 9.Vibration: 5grms/5~500Hz/random/in working(SSD); 1grms/5~500Hz/random/in working(HDD) 12.Shock: 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD） 11.Certification/EMC:CE/FCC Class A [Key features] Aluminum chassis, fanless design Intel® Baytrail Celeron J1900 2.0-2.42 CPU 1*DDR3L 1333MHz SODIMM, Up to 8GB 1*HDMI, 1*VGA, Dual independent display 2/3*Gig LAN, 1*USB3.0, 6*USB2.0(one inside) 6*COM, Optional 8-bit DIO, 1*Audio out, 1*MIC 1*Mini-PCIe(PCIeX1+USB), 1*PS/2 1*F-mSATA, 1*2.5" SATA HDD/SSD driver DC 9~36V Wide Power Input [Applications] Iot terminal, automation and manufacture application [Certification] CE/FCC Class A
