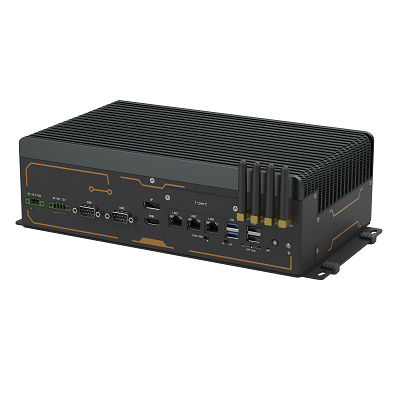

Edge AI PC BRAV-7220

embedded11th Gen Intel® Tiger Lake-UP3 i5-1145G4EIntel® Movidius™ Myriad™ X

[Specification] 1. Structure: Aluminum-magnesium alloy, SGCC frame 2. Color: Granite gray + Graphite black 3. Net weight: TBD 4. Mounting:Desktop Mounting with shock-absorbing and anti-skid foot pad, optional Din-Rail installation 5. Dimension:(W*H*D): Main box: 289.6*183*89.6mm Including mounting bracket：326.4*183*96.6mm 6. Operating temperature: -20℃～70℃（Single CPU without VPU） airflow -20℃～60℃（CPU and two VPUs operation）, airflow 7. Storage temperature:-40°C~85°C 8. Storage Humidity:10~90%@40°C, Non-condensing 9. Vibration: 5grms/5~500Hz/random/in working (SSD) 1grms/5~500Hz/random/in working (HDD) 10. Shock: 50g peak acceleration(11ms duration)(SSD) 20g peak acceleration(11ms duration)(HDD） 11. Certification/EMC:CE/FCC Class A [Key features] Intel® Tiger lake U Soc CPU Aluminum-magnesium alloy, fanless passive heat dissipation design Intel® I225V chip，3*2.5G LAN 1*DP+1*HDMI for 8K+4K dual display, 1*MIPI CSI (Opt.) 2*M.2 B-Key support 4G LTE or 5G NR wireless routes 2*M.2 M-key is PCIe x2 signal, supports nvme or edge AI module 1*mSATA and 1*easy pluggable 2.5“ SATA dual storage disks 2*COM，2*USB3.2 + 3*USB2.0，1*DIO DC9~36V wide power input，with short circuit, over voltage and over current protection DC 12V/2A radar power supply output [Applications] MEC edge computing for intelligent transportation and machine vision detection. [Certification] CE/FCC Class A
