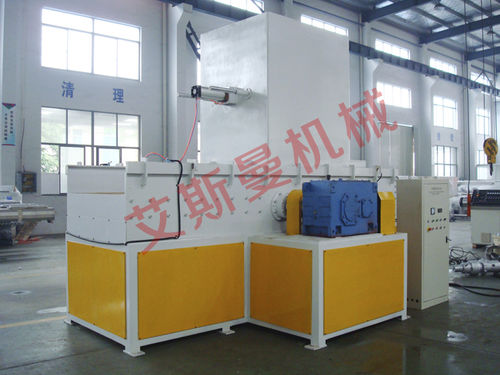

Single shaft shredder
Application
-PE,PP materials large diameter thick wall pipe , PE head material ,PE plastic packing barrels of plastic trash can
-electronic water - board-wood and so on
1.hydraulic pushing ,independent power system firm structure, stable operation ,the large bundle of plastic bag can be torn, convenient feeding
2.Spindle driven by gear box smooth operation ,low noise ,large torque
3.PLC program control system can positive and negative downtime .the machine is more safety and reliable
4.Blade material: Cr12MoV(Japanese brand skd-11,American board D2);the knife used in a V type installations, blanking uniformly rotating knife in the work reduce energy consumption and noise .every moving knife has four cutting edges. It can continue to use after rotate 90; each fixed blade has two cutting edges and it can continue to use after 180 degree.rotor blade on the removable is facilitate cleaning ,maintenance
V series shredder machine is widely used range of low speed high torque crushing equipment. after crushing the products can be used as raw material to sale or to other products. The capacity of the shredder is about 300kg/h to 3000kg/h according to different material
