Pallet shuttle

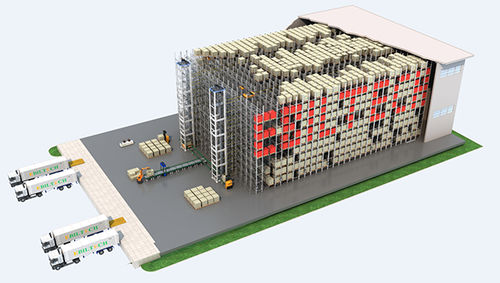

Pallet size: L1200XW1200XH1000; weight: 1000kg/pallet Cargo space: 22 rows x 31 columns x 9 levels Total storage: 6138 pallets Floor area of rack: 43.5m long X 30m wide x 13m high Workshop floor area: 58.5m long x 38m wide x 14m high. Advantages and Characteristics 1. Modular design of equipment to achieve system automation; 2. Additional equipment in later stage, and expandable warehouse-in/out efficiency; 3. Out-of-stock mode: first in first out/first in last out; The Shuttle carrier solution is a full automatic and high density storage system which takes the shuttle as a core, it is consist of radio shuttle racks, longitudinal movement shuttle, lateral movement mother shuttle, vertical direction movement elevator, conveyor lines and so on. According to practical application requirements, in-out stock can choose the way of FIFO or FILO, shuttle and mother shuttle can one-to-one match or several-for-one match. With the adjustment of WMS, WCS, equipment scheduling soft management and the whole system to suitable for the single variety and large scale situation, such as food, drink, paper, etc.
