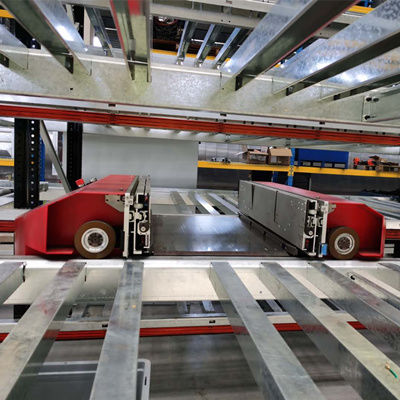

Shuttle storage system Multi-deck

Core Functions Inshuttle car is drove by both AC/DC, running on the guide rail to pick the feedboxes by the clamp to the specified location,  and put the feedboxes from racking entrance to inside.. , Advantages High speed, precise positioning Both single depth and double depth are available High picking speed Specifications 4m/s Max speed 2m/s Max acceleration speed 50KG Max load PLC Control Unit Roller Conveyors for Boxes, Totes and Bins Increasing manipulation speed between areas. Low maintenance. The distances within an installation can be covered by different transport devices, which are commonly combined with demanding requirements in terms of functionality and frequency of each and every component of the system. The use of driving mechanism and presence-detection systems enabled by mechanical or optical detection devices allows the boxes to be moved under controlled conditions to the desired positions. Goods to person  1. Inventory is received at decanting workstations where operators scan bar codes and transfer items into inventory totes.  2. Inventory totes are conveyed and automatically stored in the high-density storage buffer.  3. When needed, inventory totes are retrieved and directed to picking stations.  4. Lights and graphical instructions direct operators to pick the required items from the inventory totes and place them into     order containers.  5. When an order container is complete, it is automatically routed to the packing area.  6. Inventory totes return to the high-density storage buffer.
