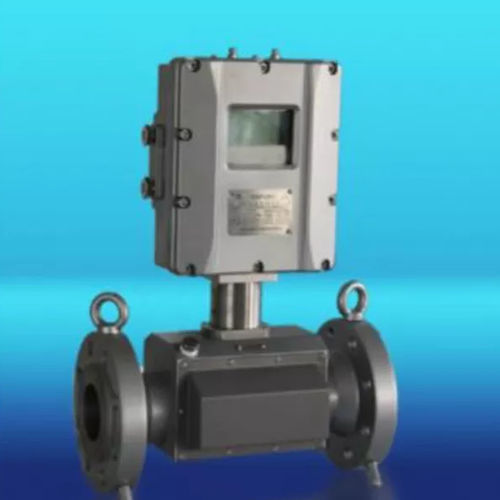

Ultrasonic flow meter CL-2-2-GYvolumefor gasDN50 - 2"
Add to favorites
Compare this product
Characteristics
- Technology
- ultrasonic
- Type
- volume
- Fluid
- for gas
- Pipe diameter
- DN50 - 2"
- Installation
- flange
- Communication
- 4-20 mA
- Supply voltage
- 24 Vdc
- Protection level
- IP66
- Applications
- industrial
- Process temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)- Process pressure
Max.: 26 MPa
Min.: 0 MPa
- Repeatibility
0.1 %
Description
CL-2-2-GY type is specially designed for gas metering of large industrial users, which is made of two path configurations with the measuring bores ranging from DN50~DN500 and the conventional working pressure covering from 0.1 MPa to 42MPa with 1.0 class accuracy.
