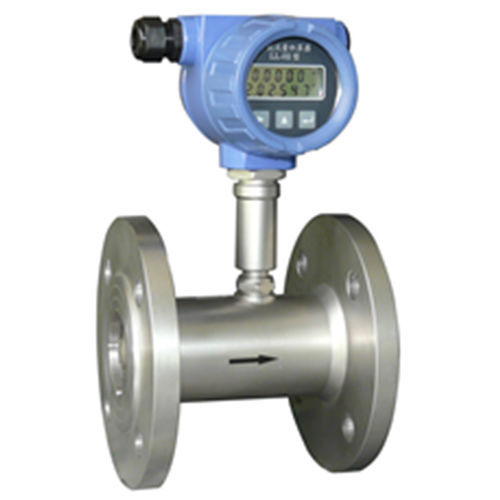

Turbine flow meter FLGY

for liquidsDN15 - 1/2"flange

The FLGY series turbine flowmeter adopts advanced techniques at home and abroad, with the advantages of simple structure, light weight, high precision, good reproducibility, sensitive response, convenient installation, maintenance and use. It is widely used for measuring liquids which is not corrosive to stainless steel 1Cr18Ni9Ti, 2Cr13, corundum Al2O3 and cemented carbide in the closed pipelines, without fiber, particles and other impurities and the kinematic viscosity is less than 5×10-6m²/s, for liquids with a kinematic viscosity greater than 5×10-6m²/s, flowmeter can be used after calibration in real liquid. If matched with a display instrument with special functions, it can also perform quantitative control, over-quantity alarm, etc. It is an ideal instrument for flow measurement and energy saving. Features High accuracy, good wear resistance, good repetition and wide range. Output pulse frequency signal, suitable for total measurement and connection with computer, no zero drift, strong anti-interference ability; Compact and lightweight structure, convenient installation and maintenance, and large circulation capacity; Suitable for high-pressure measurement, no holes are required on the meter body, and it is easy to make a high-pressure meter; There are many types of special sensors, which can be designed as various special sensors according to the special needs of users, such as low temperature type, two-way type, downhole type, special type for sand mixing, etc.
