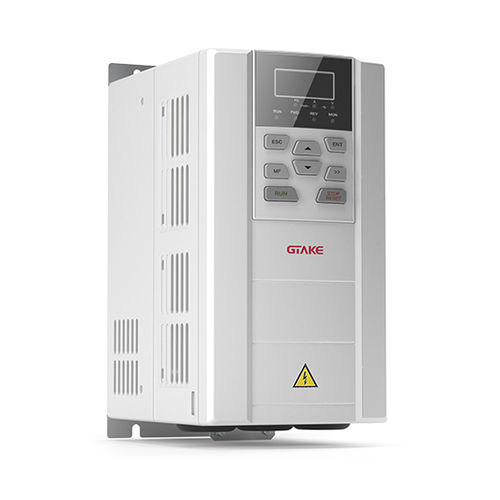

Elevator AC drive GK600E series
three-phasedigitalanalog

Elevator AC drive - GK600E series - Jiangsu Gtake Electric Co., Ltd. - three-phase / digital / analog
Elevator AC drive - GK600E series - Jiangsu Gtake Electric Co., Ltd. - three-phase / digital / analog
Elevator AC drive - GK600E series - Jiangsu Gtake Electric Co., Ltd. - three-phase / digital / analog - image - 2
Add to favorites
Compare this product


Characteristics

Type
three-phase, digital, analog
Applications
for elevators
Other characteristics
open-loop, programmable, 380-480 V
Power

Max.: 30,000 W

Min.: 3,700 W

Intensity

Max.: 65 A

Min.: 9 A

Description

GK600E are specific for passenger and freight elevators installed in residential buildings, shopping malls, and office buildings. The drives can be programmed to have a commendable leveling even they adopt open-loop control, reducing the cost of additional devices. Flexible S-curve program greatly improves comfortability for the elevator users. All elevator parameters gathered in one chapter in the user manual, and well furnished parameter default values make the commissioning easy and fast.Safety and reliability Safty at GK600E has the highest priority since we understand they are dedicated for passenger elevators. Through enable signal, the drive will enable the run of the motor only when the motor run contactor, all safty contactors are well closed. 220V AC UPS power supply, emergency speed, and inspection speed are supported or programmable at GK600E series, a full coverage on the safty requirement at the drive side. Dedicated control sequence Lift dedicated control sequence, big output torque at low frequency of V/Hz mode, and fast response time make the elevator motion stable and smooth.
