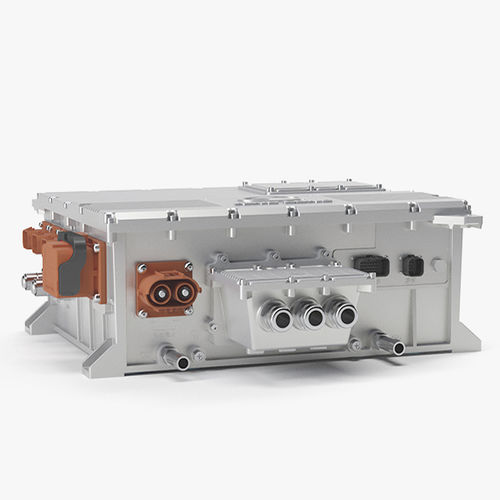

AC motor controller KTZ38X41SGKfor synchronous motorasynchronousdigital
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Motor type
- for synchronous motor, asynchronous
- Other characteristics
- digital, compact, with speed control, programmable, analog, closed-loop, universal, integrated, open-loop, encoder input, OEM, CANopen, PROFIBUS, combination, embedded, torque control
- Applications
- for electric vehicles
- Input/output
- with integrated I/O
- Input voltage
Min.: 200 V
Max.: 450 V
- Output voltage
Min.: 0 V
Max.: 380 V
- Current
253 A
Max.: 410 A
Description
Four-in-One controller
‘1+3’ combination: motor drive × 1 + auxiliary controller × 3 (DC/AC+DC/DC + high voltage distribution), applicable to vehicles like HIACE, LINEAR models.
Compatible with synchronous and asynchronous motor
Used at all GTAKE EV/HEV motor speed controllers
The core is dedicated for electric vehicles, with faster response and better performance.
Adopts the latest IGBT of Infineon whose maximum junction temperature reaches 175 ℃.
Gtake EV drives have excellent torque output capacity in the whole speed range. Even in the constant power area (the speed over the rated point), they also can maintain a stable and smooth output torque, until the maximum output capacity of the motor.
