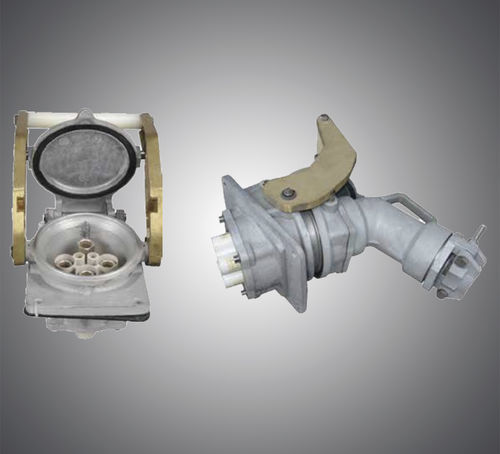

Electrical power supply connector JL08 Series
IEC C7straightelbow

electrical power supply connector
electrical power supply connector
Add to favorites
Compare this product


Characteristics

Type
electrical power supply
Format
IEC C7
Shape
straight, elbow
Connection type
socket, male-female, push-pull, plug-in
Electrical characteristics
4-pole
Material
nylon, aluminum
Product applications
plug, for power supplies
Domain
industrial, outdoor, power distribution, for power generation, marine
Other characteristics
IEC
Primary current

660 A

Voltage

1,100 V

Description

◇ Housing is made of cast aluminum; sealing is made of chloroprene rubber; fasteners are made of stainless steel. ◇ Monolithic insulators are made of nylon PA6. Insulators for power supply and power contact inside plug and socket are interchangeable. ◇ The contact material is silver-plated copper alloy which highest ambient temperature is 200℃. ◇ The cable terminals are press-fit and removable. ◇ The standard configuration is two guided contacts, and the ground contact ensures ground continuity. ◇ The power supply contacts are equipped with patented internal cage bushings for easy use. ◇ Products are corrosion resistance and with good insulation. Protection grade is IP66. ◇ Got the China Classification Society certification.
