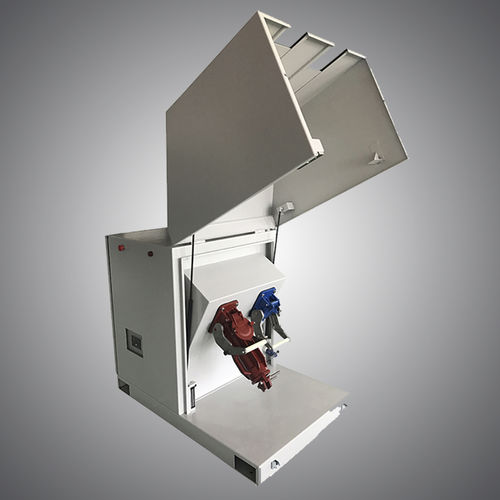

Equipped electrical box

floor-mountedmetalpower distribution

◇ Rated voltage: 7200V/ 6600V/ 12000V/ 11000V. ◇ Shore connection capacity: Configurate the specifications of the high-voltage socket boxes according to users' requirements, regular capacity is: 2MVA, 3MVA, 4MVA, 6MVA, 8MVA, 12MVA, 16MVA. ◇ Rated frequency: 60Hz or 50Hz. ◇ Protection grade: plugs and sockets no less than IP66, socket boxes no less than IP5. ◇ Communication Interface: equipped with optical fiber communication device and standard ST interface; Can realize real-time monitoring of shipyard, data sharing, alarm information transmission and other functions (Optional, need system integrator design). ◇ Safety protection measures: electrical and mechanical interlock design to ensure shore connection system safe. When the high voltage socket is energized, the shore cabinet door or socket cover can't be opened. When the shore cabinet door or socket cover is open, the high voltage socket is not energized. ◇ Related configuration: General equipped with emergency stop button, running lights, three-color alarm lights, high-voltage surge protection devices, high voltage lightning protection, etc. ◇ Special conditions: could be used in the conditions of anti-condensation, oil mist, salt spray. ◇ Ambient temperature: -30℃～+50℃. ◇ Relative humidity: <95%.
