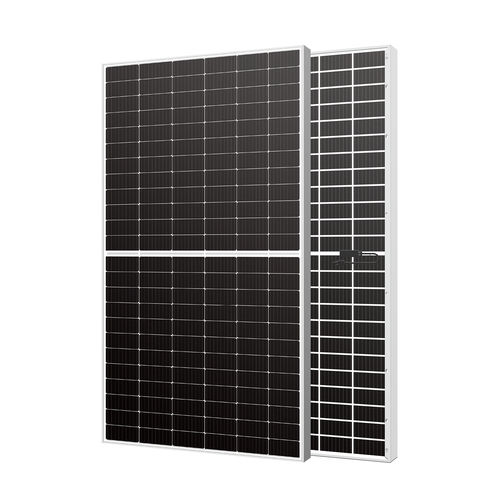

Monocrystalline silicon PV solar module S7-144GAPERCTUVCE
Add to favorites
Compare this product
Characteristics
- Technology
- monocrystalline silicon
- Features
- PERC
- Certifications
- TUV, CE, ISO
- Peak power (Wp)
435 W, 440 W, 445 W, 450 W, 455 W
- Open-circuit voltage
48.8 V, 49.1 V, 49.3 V, 49.5 V, 49.8 V
- Short circuit current
11.6 A, 11.7 A, 11.8 A
- Max power voltage
40.9 V, 49.1 V, 49.3 V, 49.5 V, 49.8 V
- Max power current
10.6 A, 10.7 A, 10.8 A, 10.9 A
- Module efficiency
20 %, 20.2 %, 20.5 %, 20.7 %, 20.9 %
- Lenght
2,094 mm
(82 in)- Width
1,038 mm
(41 in)- Height
30 mm, 35 mm
(1 in, 1 in)- Weight
27.5 kg
(60.63 lb)
Description
• Higher output power
• Lower temperature coefficient
• Up to 30% additional power gain from back side depending on albedo
• Lower LCOE (Levelized Cost Of Energy)
• High Power output lead to lower BOS cost
• ISO9001:2015 Quality Management system
• ISO014001:2015 Environmental Management System
• IS045001:2018 Occupational Health and Safety Management System
• Salt Mist Corrosion Protect
• Ammonia Resistance
• Excellent Potential Induced Degradation Resistance
• Excellent Wind Load 2400Pa & Snow Load 5400Pa Under Certain Installation Method
