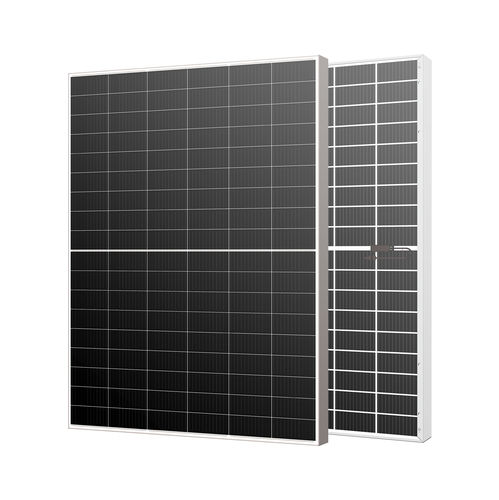

Monocrystalline silicon PV solar module S9-108GAPERCTUVCE
Add to favorites
Compare this product
Characteristics
- Technology
- monocrystalline silicon
- Features
- PERC
- Certifications
- TUV, CE, ISO
- Peak power (Wp)
525 W, 530 W, 535 W, 540 W, 545 W
- Open-circuit voltage
37.1 V, 37.3 V, 37.5 V, 37.6 V, 37.8 V
- Short circuit current
18.6 A, 18.7 A, 18.8 A
- Max power voltage
30.5 V, 30.7 V, 30.9 V, 31.1 V, 31.3 V
- Max power current
17.2 A, 17.3 A, 17.4 A
- Module efficiency
20.5 %, 20.7 %, 20.9 %, 21.1 %, 21.3 %
- Lenght
1,962 mm
(77 in)- Width
1,303 mm
(51 in)- Height
35 mm
(1 in)- Weight
31.5 kg
(69.45 lb)
Description
•Higher output power
•Lower temperature coefficient
•Up to 30% additional power gain from back side depending on albedo
•Lower LCOE (Levelized Cost Of Energy)
•High Power output lead to lower BOS cost
•ISO9001:2015 Quality Management system
•ISO014001:2015 Environmental Management System
•IS045001:2018 Occupational Health and Safety Management System
•Salt Mist Corrosion Protect
•Ammonia Resistance
