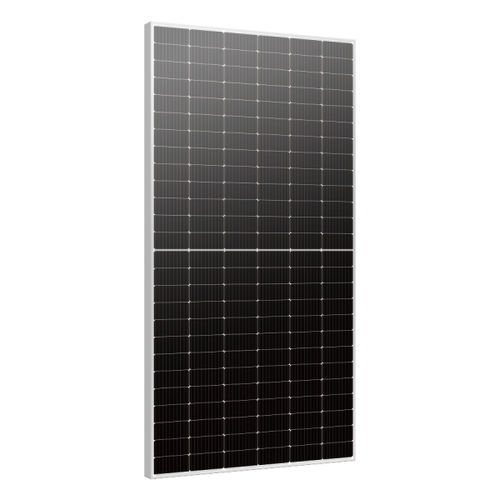

BIPV PV solar module S8-156GANT
TUVCEISO

BIPV PV solar module
BIPV PV solar module
Add to favorites
Compare this product


Characteristics

Technology
BIPV
Certifications
TUV, CE, ISO
Peak power (Wp)

605 W, 610 W, 615 W, 620 W, 625 W

Open-circuit voltage

54,790 mV, 54,980 mV, 55,170 mV, 55,360 mV, 55,550 mV

Short circuit current

14,030 mA, 14,090 mA, 14,150 mA, 14,210 mA, 14,270 mA

Max power voltage

46 mV, 45,660 mV, 45,830 mV, 46,170 mV, 46,330 mV

Max power current

13,250 mA, 13,310 mA, 13,370 mA, 13,430 mA, 13,490 mA

Module efficiency

21.64 %, 21.82 %, 22 %, 22.18 %, 22.36 %

Lenght

2,465 mm
(97 in)

Width

1,134 mm
(45 in)

Height

35 mm
(1 in)

Weight

34.6 kg
(76.28 lb)

Description

10%-30% Additional Power Generation ▲ 30 years lifespan brings 10-30% additional power generation comparing with conventional P-type module Outstanding Low Light Performance ▲ Higher power output even under low-light environments like on cloudy or foggy days. Zero LID (Light Induced Degradation) ▲ N-type solar cell has no LID naturally which can increase power generation Better Temperature Coefficient ▲ Higher power generation under working conditions, thanks to passivating contact cell technology PID Resistance ▲ Excellent Anti-PID performance guarantee via optimized mass-production process and materials control Enhanced Mechanical Load ▲ Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal) Lower LCOE ▲ Higher bifaciality, higher power output and lower BOS cost Wider Applicability ▲ More application scenes like BIPV, vertical installation, snowfield, high-humid, windy and dusty area
