- CE photovoltaic module
- Jiangsu Runda PV Co.,Ltd

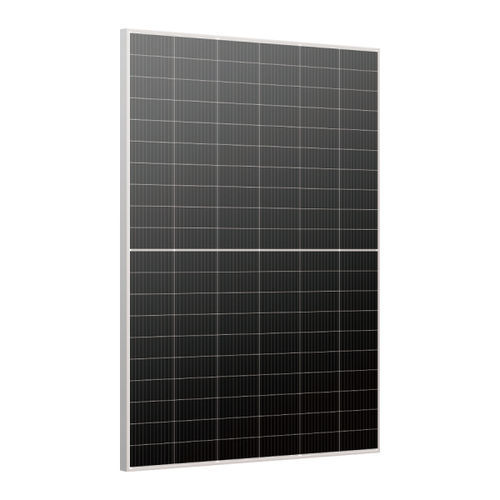

CE PV solar module S9-120GANTISOTUV
Add to favorites
Compare this product
Characteristics
- Certifications
- TUV, CE, ISO
- Peak power (Wp)
615 W, 620 W, 625 W, 630 W, 635 W
- Open-circuit voltage
42,160 mV, 42,350 mV, 42,540 mV, 42,730 mV, 42,920 mV
- Short circuit current
18,670 mA, 18,720 mA, 18,770 mA, 18,820 mA, 18,870 mA
- Max power voltage
34,900 mV, 35,110 mV, 35,310 mV, 35,510 mV, 35,710 mV
- Max power current
17,620 mA, 17,660 mA, 17,700 mA, 17,740 mA, 17,780 mA
- Module efficiency
21.73 %, 21.91 %, 22.08 %, 22.26 %, 22.44 %
- Lenght
2,172 mm
(86 in)- Width
1,303 mm
(51 in)- Height
35 mm
(1 in)- Weight
35 kg
(77.16 lb)
Description
10%-30% Additional Power Generation
▲ 30 years lifespan brings 10-30% additional power generation comparing with conventional P-type module
Outstanding Low Light Performance
▲ Higher power output even under low-light environments like on cloudy or foggy days.
Zero LID (Light Induced Degradation)
▲ N-type solar cell has no LID naturally which can increase power generation
Better Temperature Coefficient
▲ Higher power generation under working conditions, thanks to passivating contact cell technology
PID Resistance
▲ Excellent Anti-PID performance guarantee via optimized mass-production process and materials control
Enhanced Mechanical Load
▲ Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal)
Lower LCOE
▲ Higher bifaciality, higher power output and lower BOS cost
Wider Applicability
▲ More application scenes like BIPV, vertical installation, snowfield, high-humid, windy and dusty area
