- CE photovoltaic module
- Jiangsu Runda PV Co.,Ltd

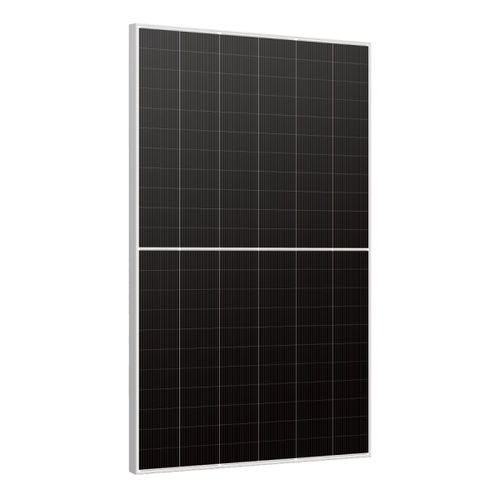

CE PV solar module S9-132GANTISOTUV
Add to favorites
Compare this product
Characteristics
- Certifications
- TUV, CE, ISO
- Peak power (Wp)
680 W, 685 W, 690 W, 695 W, 700 W
- Open-circuit voltage
46,500 mV, 46,690 mV, 46,880 mV, 47,070 mV, 47,260 mV
- Short circuit current
18,690 mA, 18,740 mA, 18,790 mA, 18,840 mA, 18,890 mA
- Max power voltage
38,550 mV, 38,740 mV, 38,940 mV, 39,130 mV, 39,330 mV
- Max power current
17,640 mA, 17,680 mA, 17,720 mA, 17,760 mA, 17,800 mA
- Module efficiency
21.89 %, 22.05 %, 22.21 %, 22.37 %, 22.53 %
- Lenght
2,384 mm
(94 in)- Width
1,303 mm
(51 in)- Height
35 mm
(1 in)- Weight
38 kg
(83.78 lb)
Description
10%-30% Additional Power Generation
▲ 30 years lifespan brings 10-30% additional power generation comparing with conventional P-type module
Outstanding Low Light Performance
▲ Higher power output even under low-light environments like on cloudy or foggy days.
Zero LID (Light Induced Degradation)
▲ N-type solar cell has no LID naturally which can increase power generation
Better Temperature Coefficient
▲ Higher power generation under working conditions, thanks to passivating contact cell technology
PID Resistance
▲ Excellent Anti-PID performance guarantee via optimized mass-production process and materials control
Enhanced Mechanical Load
▲ Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal)
Lower LCOE
▲ Higher bifaciality, higher power output and lower BOS cost
Wider Applicability
▲ More application scenes like BIPV, vertical installation, snowfield, high-humid, windy and dusty area
