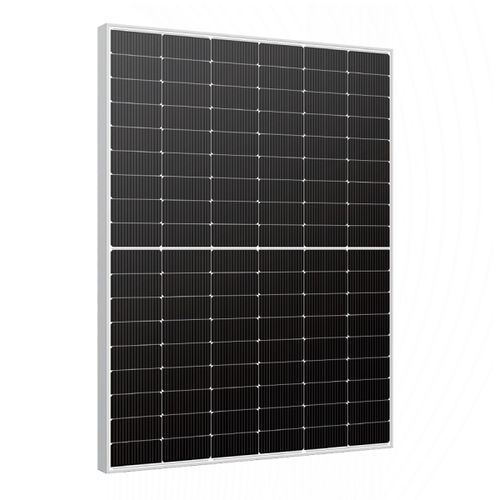

BIPV PV solar module S8-108GANTTUVCEISO
Add to favorites
Compare this product
Characteristics
- Technology
- BIPV
- Certifications
- TUV, CE, ISO
- Peak power (Wp)
435 W, 440 W, 445 W
- Open-circuit voltage
39,130 mV, 39,330 mV, 39,530 mV
- Short circuit current
14.2 mA, 14,010 mA, 14,080 mA
- Max power voltage
32,460 mV, 32,670 mV, 32,870 mV
- Max power current
13,400 mA, 13,470 mA, 13,540 mA
- Module efficiency
21.77 %, 22.02 %, 22.27 %
- Lenght
1,762 mm
(69 in)- Width
1,134 mm
(45 in)- Height
30 mm
(1 in)- Weight
24 kg
(52.91 lb)
Description
10%-30% Additional Power Generation
▲ 30 years lifespan brings 10-30% additional power generation comparing with conventional P-type module
Outstanding Low Light Performance
▲ Higher power output even under low-light environments like on cloudy or foggy days.
Zero LID (Light Induced Degradation)
▲ N-type solar cell has no LID naturally which can increase power generation
Better Temperature Coefficient
▲ Higher power generation under working conditions, thanks to passivating contact cell technology
PID Resistance
▲ Excellent Anti-PID performance guarantee via optimized mass-production process and materials control
Enhanced Mechanical Load
▲ Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal)
Lower LCOE
▲ Higher bifaciality, higher power output and lower BOS cost
Wider Applicability
▲ More application scenes like BIPV, vertical installation, snowfield, high-humid, windy and dusty area
