BIPV PV solar module S8-120GANT
TUVCEISO

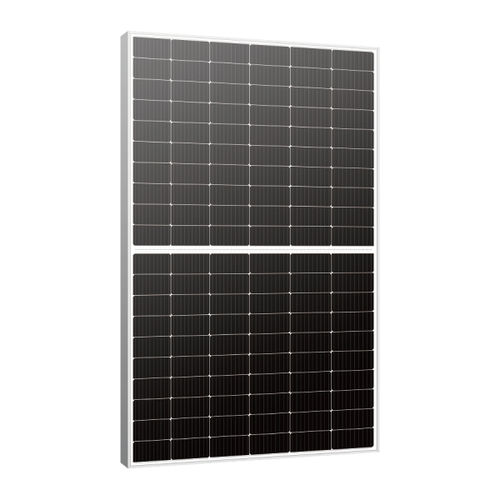

BIPV PV solar module - S8-120GANT  - Jiangsu Runda PV Co.,Ltd - TUV / CE / ISO
BIPV PV solar module - S8-120GANT  - Jiangsu Runda PV Co.,Ltd - TUV / CE / ISO
Add to favorites
Compare this product


Characteristics

Technology
BIPV
Certifications
TUV, CE, ISO
Peak power (Wp)

460 W, 465 W, 470 W, 475 W, 480 W

Open-circuit voltage

41,940 mV, 42,130 mV, 42,320 mV, 42,510 mV, 42,700 mV

Short circuit current

14,020 mA, 14,080 mA, 14,140 mA, 14,200 mA, 14,260 mA

Max power voltage

34.7 V, 34.9 V, 35.2 V, 35.4 V, 35.6 V

Max power current

13,250 mA, 13,310 mA, 13,370 mA, 13,430 mA, 13,490 mA

Module efficiency

21.25 %, 21.48 %, 21.71 %, 21.94 %, 22.17 %

Lenght

1,909 mm
(75 in)

Width

1,134 mm
(45 in)

Height

30 mm
(1 in)

Weight

27 kg
(59.52 lb)

Description

10%-30% Additional Power Generation ▲ 30 years lifespan brings 10-30% additional power generation comparing with conventional P-type module Outstanding Low Light Performance ▲ Higher power output even under low-light environments like on cloudy or foggy days. Zero LID (Light Induced Degradation) ▲ N-type solar cell has no LID naturally which can increase power generation Better Temperature Coefficient ▲ Higher power generation under working conditions, thanks to passivating contact cell technology PID Resistance ▲ Excellent Anti-PID performance guarantee via optimized mass-production process and materials control Enhanced Mechanical Load ▲ Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal) Lower LCOE ▲ Higher bifaciality, higher power output and lower BOS cost Wider Applicability ▲ More application scenes like BIPV, vertical installation, snowfield, high-humid, windy and dusty area

Catalogs

No catalogs are available for this product.

See all of Jiangsu Runda PV Co.,Ltd‘s catalogs
