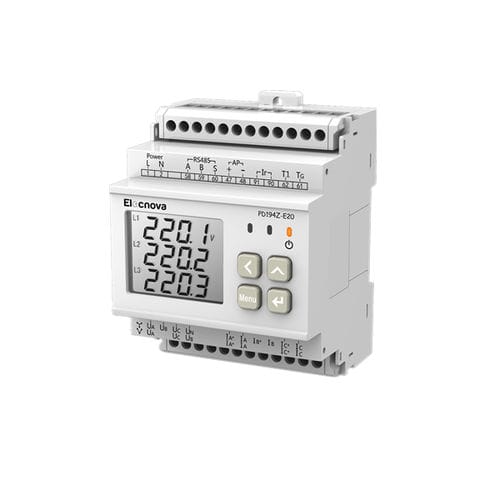

Multimeter power meter PD194Z-E20 series

digitalthree-phaseDIN rail

PD194Z-E20 is a din rail mounted multi-functional power for long distance power monitoring and energy management. There are up to 4 wireless data communication module as optional enclosure in LoRa, NB-IoT, GPRS and Wifi, fulfils the high standards of the industrial users. The standard 4din wide with LCD display, users could check the data from the panel or on the PC. The PD194Z-E20 is a powerful mulit-fultional meter which could measure harmonic up to 63rd, multi-tariff, data loggnig, SECO record up 16000lines. Intelligent measurement and control meter PD19 series products, as a kind of advanced intelligent and digital front-end acquisition element for power grid, have rich monitoring functions and are convenient for use, and can be applied to energy management system, automatic power distribution, intelligent building, and intelligent switch cabinet. Accuracy Class 0.5S accuracy for active energy ; Class 2 accuracy for ractive energy Fundamental-wave electrical quantity measurement Three-phase fundamental wave voltage, three-phase fundamental wave current, phase separate and total fundamental-wave active power, phase separate and total fundamental-wave reactive power, phase separate and total fundamental-wave apparent power, and fundamental-wave power factor (optional) Power quality monitoring Total harmonie distortion, 2-15 sub-harmonic content, sequence component, phase position, degree of unbalance, mean value, voltage crest coefficient, and current coefficient K
