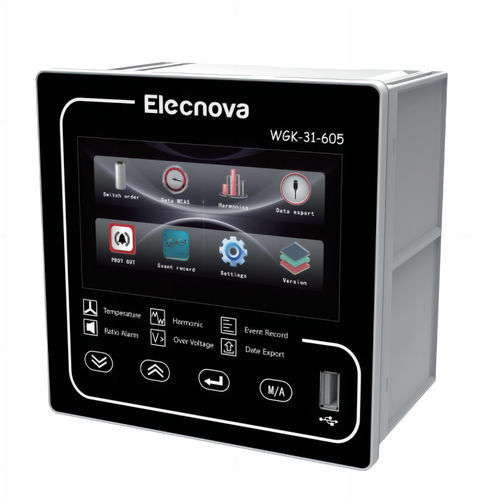

Digital power factor controller WGK-31-605 series

WGK series reactive power compensation controller adopts digital design and AC sampling algorithm. It is equipped with TFT HMI and standard RS-485 port for supporting Modbus-RTU protocol. Main features ● Fully digital design, using AC sampling algorithm ● Human-machine interface adopts TFT display or large-screen LCD Chinese liquid crystal display ● Modular assembly, streamlined appearance design ● With RS-485 standard bus interface, support Modbus-RTU communication protocol ● Real-time display of voltage, current, power factor, active power, reactive power, harmonic voltage, harmonic current, frequency, capacitor switching status, temperature and other parameters ● Harmonic protection function ● Adjust the target power factor cosφ within the range of 0.80 (lag)-1-0.80 (lead) ● Manual/automatic switching for selection ● Support equal capacity, coding and fuzzy control switching mode ● When the power supply of grid is interrupted for more than 15 ms, the voltage loss is released ● The output capacity of each output circuit can be set at the same time Main technical parameters ● Display mode: TFT touch screen ● Sampling voltage: 400V or 220V ● Working voltage: AC220 V ● Rated number of circuits: 12 circuits/21 circuits ● Rated input: 5A ● It has two working modes of manual compensation and automatic compensation ● It has the function of harmonic measurement and protection ● It has RS-485, Modbus-RTU standard field bus communication interface (optional) ● Installation method: panel installation
