Ground-mount PV mounting system SF-I
aluminiumstainless steelfree-standing

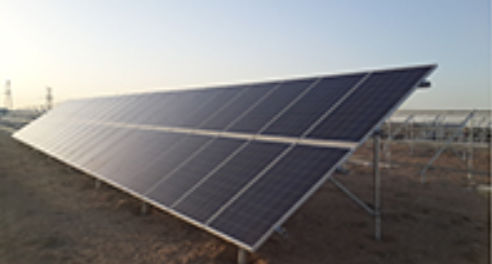

Ground-mount PV mounting system - SF-I  - Jiangsu Weier Metal Co., Ltd. - aluminium / stainless steel / free-standing
Ground-mount PV mounting system - SF-I  - Jiangsu Weier Metal Co., Ltd. - aluminium / stainless steel / free-standing
Ground-mount PV mounting system - SF-I  - Jiangsu Weier Metal Co., Ltd. - aluminium / stainless steel / free-standing - image - 2
Ground-mount PV mounting system - SF-I  - Jiangsu Weier Metal Co., Ltd. - aluminium / stainless steel / free-standing - image - 3
Add to favorites
Compare this product


Characteristics

Applications
ground-mount
Material
aluminium, stainless steel
Options
free-standing
Wind speed

36 m/s
(118 ft/s)

Snow load

1 kN/m²
(0 psi)

Description

Dual Screw Foundation Technical Data: • Solar system: PV plant, Family plant, open area ground PV system • System type: Ground, single screw driven foundation • Material Option: hot-dip galvanized steel, Aluminum ,Stainless Steel • Ground Screw: hot-dip galvanized steel • Mounting angle: customized design; fixed • Module: framed crystalline module, unframed thin film module • Module connection: middle & end clamp • Average thickness of zinc layer: up to 80 um or customized Features: • cost effective • Fast & efficient installation • Fit to small scale PV plant • Saved installation time & Labour cost • Screw pile foundation makes system robust & stable • Suitable for different , especially for hard & dry geological soil condition, like stony land, permafrost, gravel etc • Maximum module array vertically & horizontally • 25 years anti corrosion warranty
