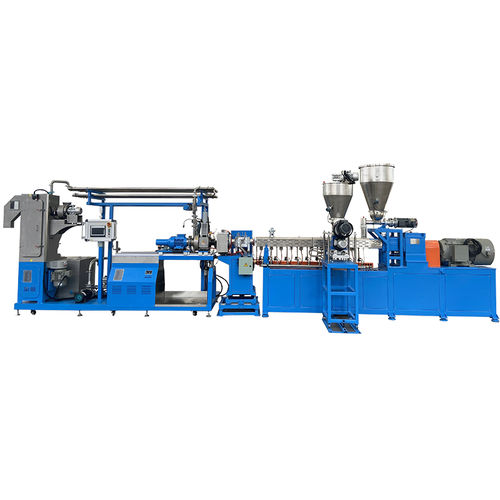

Compounding extruder PSHJ-50for PETfor PAfor PBT
Add to favorites
Compare this product
Characteristics
- Applications
- compounding
- Treated material
- for PET, for PA, for PBT
- Number of screws
- parallel twin-screw
- Other characteristics
- for masterbatch, with underwater pelletizing
- Output
Max.: 300 kg/h
(661.3868 lb/h)Min.: 100 kg/h
(220.4623 lb/h)- Screw diameter
50.5 mm
(2 in)- Screw length
1,330 mm
(52 in)Max.: 3,000 mm
(118 in)Min.: 840 mm
(33 in)- Maximum speed
500 rpm
(3,142 rad.min-1)Max.: 800 rpm
(5,027 rad.min-1)Min.: 100 rpm
(628 rad.min-1)- Torque
6 Nm
(4 ft.lb)Max.: 12 Nm
(9 ft.lb)Min.: 8 Nm
(6 ft.lb)- Temperature
200 °C
(392 °F)Max.: 400 °C
(752 °F)Min.: 0 °C
(32 °F)- Maximum pressure
8 bar
(116 psi)Max.: 15 bar
(217.6 psi)Min.: 5 bar
(72.5 psi)- Overall length
1,500 mm
(59 in)Max.: 5,540 mm
(218 in)Min.: 840 mm
(33 in)- Overall width
900 mm
(35 in)Max.: 1,000 mm
(39 in)Min.: 800 mm
(31 in)- Total height
1,500 mm
(59 in)Max.: 2,000 mm
(79 in)Min.: 1,000 mm
(39 in)- Weight
5,000 kg
(11,023 lb)Max.: 6,000 kg
(13,228 lb)Min.: 1,000 kg
(2,205 lb)- Power
19 kW
(25.83 hp)Max.: 480 kW
(652.62 hp)Min.: 5 kW
(6.8 hp)
Description
> German Henschel high torque gearbox and British original torque limiter, perfect combination of high output and high performance
> A variety of screw elements with modular structure, can realize the production of different materials and different process requirements
> Equipped with Omron temperature control system, the temperature control in the processing section is more accurate
> CE standard electrical components and control system , reliable operation and long service life
> The “clamshell” design makes screw changes and cleanout quick and easy, adding to its versatility
> The highest output reaches 1500 kg/h
Wide Application
We provide our machinery users with consistent high productivity and product quality and the maximum cost effectiveness with XINDA technology. The XINDA twin screw (P)SHJ series is ideal for precise compounding of polyolefins,engineered plastics and other continuous processes.
