Tube extruder

for PPfor PEfor HDPE

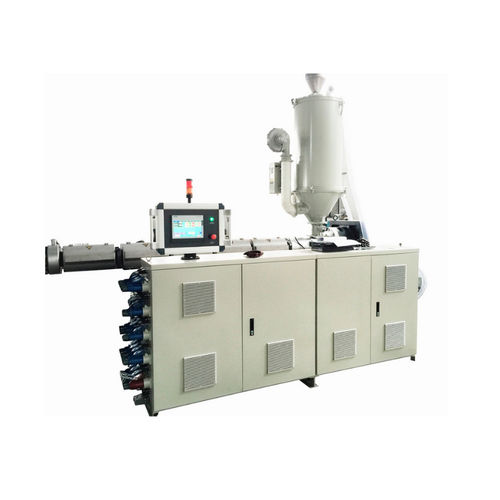

Single Screw Extruder Single screw extuder is mainly used from plasic granule, such as HDPE, LDPE, PP, PPR, PPH, PPB, MPP, PERT, etc. Based on 33:1 L/D ratio for screw design, we have developed 38:1 L/D ratio. Compared with 33:1 ratio, 38:1 ratio has advantage of 100% plasticization, increase output capacity by 30%, reduce power consumption up to 30% and reach almost linear extrusion performance. Simens Touch Screen and PLC Apply program developed by our company, have English or other languages to be input into the system. Spiral Structure of Barrel Feeding part of barrel use spiral structure, to ensure material feed in stable and also increase feeding capacity. Special Design of Screw Screw is designed with special structure, to ensure good plasticization and mixing. Unmelted material can not pass this part of screw. Air Cooled Ceramic Heater Ceramic heater ensure long working life. This design is to increase the area which heater contact with air. To have better air cooling effect. High Quality Gearbox Gear accuracy to be ensured 5-6 grade and lower noise below 75dB. Compact structure but with high torque. Soft connection for coupling Used to connect gearbox and main motor. Soft connection can extend main motor working life and also proect the main motor.
