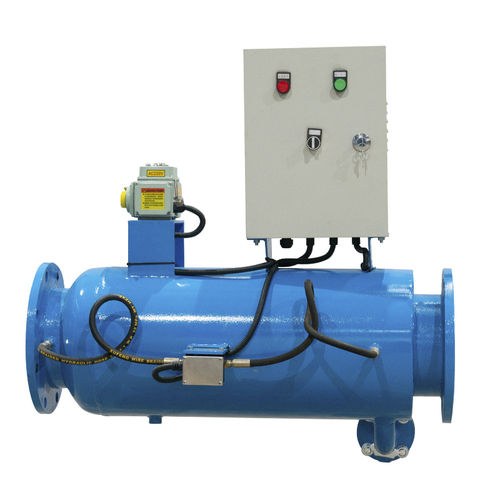

Wastewater filter YL-P series

strainercarbon steelcontinuous

Vertical P type recoil sewage Water filter P-type recoil sewage filter is applied to a variety of water supply systems, process water systems and industrial cooling water system, especially the 24 hours of continuous operation of a running system, a variety of mechanical impurities, water can be filtered to ensure the safety of the system equipment and reliableoperation. Structure&Working Principle P-type recoil sewage filter quality carbon steel tube, the special structure of the stainless steel wedge filter, valve and sewage equipment. When the filters work, the butterfly valve is turned on, the water flow from the inlet into the filter, filter-filter to export. When the filter needs to sewage, close the butterfly valve, open the drain valve, the water filtered by the filter before the second half of the part of the water inflow by the export system, the remaining water from the filter after the first half of the outside into the inside, by the outfall discharge from the automatic flushing to reverse the role of the filter. The entire process of flushing the system can work properly, with no downtime. Technical Parameter 1、Treatment effect ※Filtering accuracy: according to user needs ※Filtering efficiency：80%～99% ※Pressure loss：≤0.015Mpa 2、Water quality ※Working pressure：≤1.6Mpa ※Working temperature：0℃～120℃ ※Working environment&temperature：-25℃～+50℃ ※Relative humidity：﹤95% 3、Operating parameter ※MTBF：﹥60000h ※Degigned life：20years Other: work pressure, filtration precision and specification size according to user require special manufacturing, flange connection dimensions according to GB-9119.8-88
