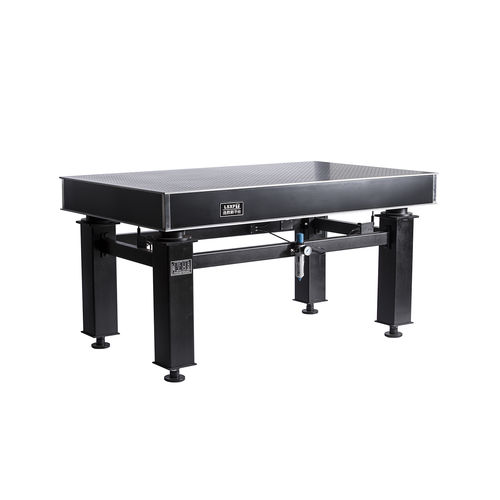

Vibration damping optical table ZDT-P Series

precisionpneumatic

The ZDT-P type pneumatic isolators adopt ultra thin compound material air springs with additional multi air streams laminar flow vibration isolation damping technology. The isolators provide excellent vibration isolation efficiency with high stable performance. The air spring isolators also feature auto leveling and inflating characteristics. The air system of the ZDT-P type, both of the air tubes and air pressure filters are made of Germany FESTO. The silent air compressor need to be ordered separately. Applications: ▪High precision optical microscopes, Bio-medical applications ▪Optical path testing and measurement ▪Laser scanning and interferometers. ▪Spectrometers and high precision measuring ▪Integrated electronics and other optical devices that requires for high vibration isolation performance Technical Specifications: Inherent Frequency: Vertical: 1.0-2.0Hz Horizontal:1.0-2.0Hz Vibration isolating Type:U ltra thin air springs Leveling Type:Automatic Vibration Damping Type: Porous quasi-laminar flow damping element with diffuser TotalTable Height:800mm Working Air Pressure:0.2-0.4MPa Compressed Air Source: Silent Compressor (Noisy Level) ＜50dB Vibration Isolating Efficiency: Vertical: 5Hz 82～88% 10Hz 86～95% Horizontal: 5Hz 78～86% 10Hz 84～92% Re-leveling Accuracy:±0.1mm Table Top Flatness:≤0.05mm/m² Surfaced Roughness:≤0.8μm，matt surface treatment Isolator Height Adjustment Range:±10mm
