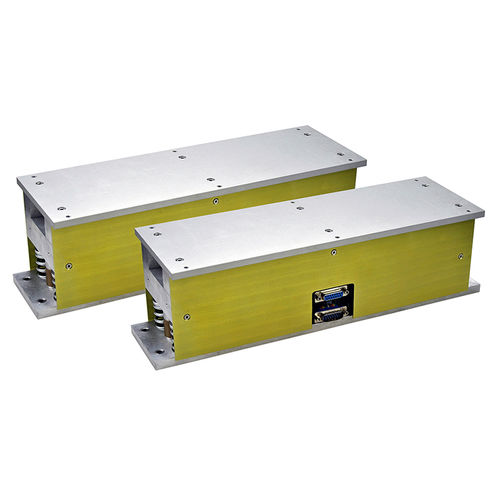

With Jiangxi Liansheng active vibration isolation VCM200, sub-herz vibration isolation performance can be achieved across all six degrees of freedom and it can provide 90% reduction at 5Hz, 95% reduction at 10Hz and above.
Features:
* Active isolation from 1 - 200 Hz
* Passive isolation beyond 200 Hz
* Isolates in all six degrees of freedom
* Internal feedback loop
* Free combination as per load and dimension requirements
* Easy installation and simple to use without persistent maintenance
Technical Specification:
* Isolation range:1- 200Hz
* Isolation Directions:all six degrees of freedom with internal feedback loop
* Isolation Efficiency:>5Hz 90%, >10Hz 95%
* Load Capacity:15-300Kg
* 10-20 ms responsive time
* Net weight:20kg
* Power Supply:220V, 50Hz
* Power input: 50W
* Working temperature:5- 40C°
* Placed on a platform with flatness less than 0.5mm.
* Platform Dimension:(600*500mmm - 800*1000mm)
