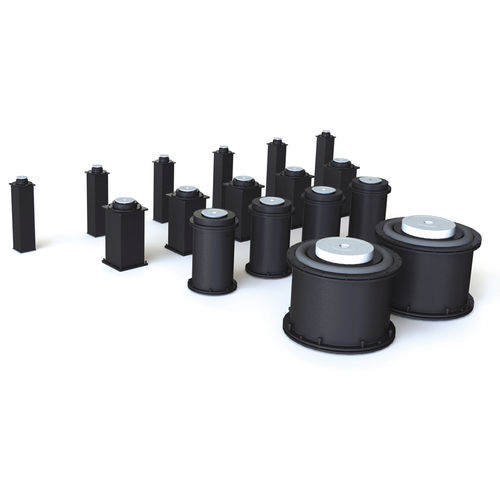

Laboratory anti-vibration system ZDT-B Series

pneumatic

Product Features: ▪ Ultra-thin air bag structure to eliminate the impact on the system inherent frequency ▪ Single pendulum spring principle to achieve much lower inherent frequency in horizontal direction ▪ High precision pneumatic control system with features of high sensibility, high speed and stability ▪ Self leveling and balancing ▪ Optional choice of castors With the innovated design of the pendulum rod structure, the ZDT-B type pneumatic isolators can achieve much lower inherent frequency in horizontal direction and better load capacity, compared with other conventional pneumatic air spring vibration isolators. In fact the innovated design and technology of pendulum bar has been granted as the state level innovation patent. The critical components of the pneumatic system are made by FESTO. The silent air compressor need to be ordered separately. Applications: ▪High precision optical microscopes, bio-medical applications ▪Optical path testing and measurement ▪Laser scanning and interferometers ▪Spectrometers and high precision measuring ▪Integrated electronics and other optical devices or experiment that requires for very high vibration isolation performance
