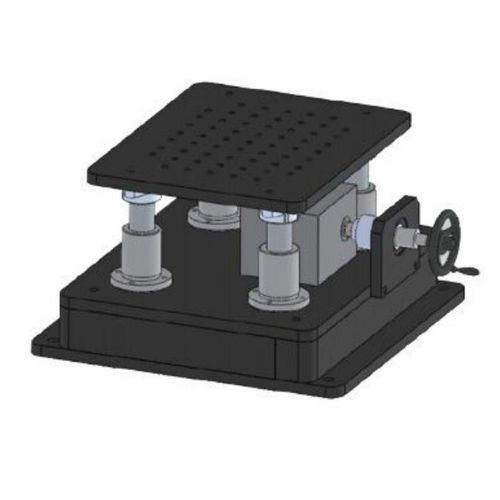

Linear stage LSSS-XW B series

manualfor large loads

features: 1.Working platform placed on level, driving force on the center, four guide around the over position configuration, the slanting load problem caused by the vertical use of the translation stages is solved, stability is very natural superior. 2.High quality ball screws as transmission,fine grinding worm gear as vice driven, can realize high precision,large load capacity, subdivision adjustment, and self locking 3.Guide rail has linear slide bearing, and it can realize comfortable operation 4.Lift quantitative adjustment,The handwheel scale make it easy for reading 5.The base has standard pitch of the threaded hole and the through-hole,it’s easy for installation. 6.The organ cloth dust-proof covers is available, make it dust-proof and elegant appearance
