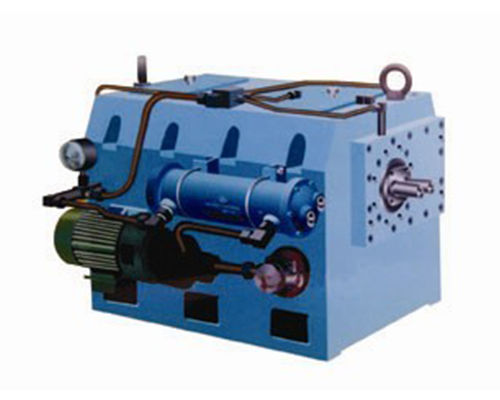

Gear train gear reducer TPS seriesright angle200 - 500 Nm100 - 200 Nm
Add to favorites
Compare this product
Characteristics
- Type
- gear train
- Shaft orientation
- right angle
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm
- Performance
- low-noise, high-efficiency
- Applications
- transmission, for twin-screw extruder
- Rotational speed
Min.: 300 rpm
(1,884.96 rad.min-1)Max.: 800 rpm
(5,026.55 rad.min-1)
Description
Name:TPS, TPS-B series reducer
Classification:Rubber Machinery Reducer
Features:
TPS, TPS-B series reducer is a special gear transmission matched with the parallel twin-screw extruder. The main transmission parts are made of high-strength alloy steel. The gears are processed by carburizing, quenching and grinding teeth. The gear accuracy is (GBl0095-88)6. An over-sized thrust bearing is disposed in the front of the hollow output shaft and is subjected to the working recoil force of the screw. The whole machine has the characteristics of small size, high carrying capacity, smooth transmission, low noise and high efficiency.
