Gear train gearbox ZSYF seriesparallel-shaftsolid-shaft> 10 kNm
Add to favorites
Compare this product
Characteristics
- Type
- gear train
- Shaft orientation
- parallel-shaft
- Shaft configuration
- solid-shaft
- Torque
- > 10 kNm
- Configuration
- modular
- Performance
- low-noise, high-efficiency
- Applications
- transmission
- Power
Max.: 170 kW
(231.14 hp)Min.: 15 kW
(20.39 hp)
Description

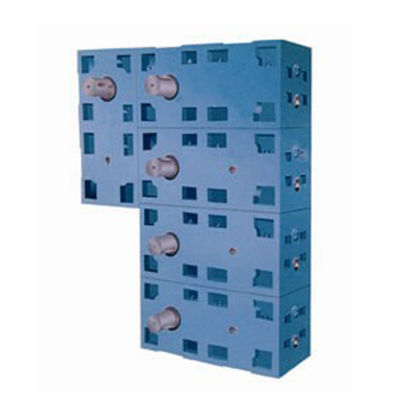

Name:ZSYF series reducer
Classification:Rubber Machinery Reducer
Features：
ZSYF series reducer is a special gear box matched with modular calender. The entire chassis body adopts six-sided processing, which can be easily combined in multiple ways to meet the roll arrangement of multi-roller calenders.
This series of reducer adopts JB/T9050.1-1999 standard design. The main transmission parts are made of high quality alloy steel. The gears are manufactured through carburizing, quenching and tooth grinding processes, reaching (GBl0095-88) 6-level accuracy. The whole machine has the characteristics of small size, high carrying capacity, smooth transmission, low noise and high efficiency.
