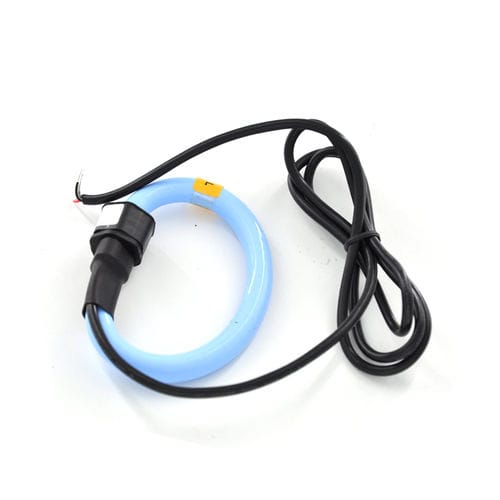

Rogowski coil current sensor RC

ACsplit-coreprecision

Flexible Rogowski Coil Without Integrator Jiangyin Spark rogowski coil is flexible, like rope ,it is designed to use where solid or split core current transformers cannot fit Advantage including high accuracy, wide measurement and frequency range and very light weight.The probes comprise a flexible air–cored sensor which can be opened, allowing them to be installed around a primary conductor without interrupting the circuit. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas and with large conductors. Specifications: Current Range: 10A to 100kA Rated output: 0.333Vac at rated current with Integrator,100mV/per 1000A @ 50Hz without integrator Accuracy:±1% from 5% to 120% of rated current with integrator(45-65Hz) Phase Angle: ≤±1°5% to 120% from 5% to 120% of rated current Linear: 0.5% Frequency: 1Hz-1MHz ,50/60 Hz nominal Work Voltage: 600V Power supply: 7-30VDC (9 Vdc,12 Vdc recommended ) Coil Diameter: 10.5mm,12mm or as customer order Window size: 10mm,15mm or as per customer ordered Wire lead: 1 meter sheath cable or as customers order Withstand Voltage:3000V Operating temperature: -25℃-+70℃ IP class : IP65 CE recognized. RoHS Complianting head allows quick and easy installation in hard to reach areas and with large conductors.
