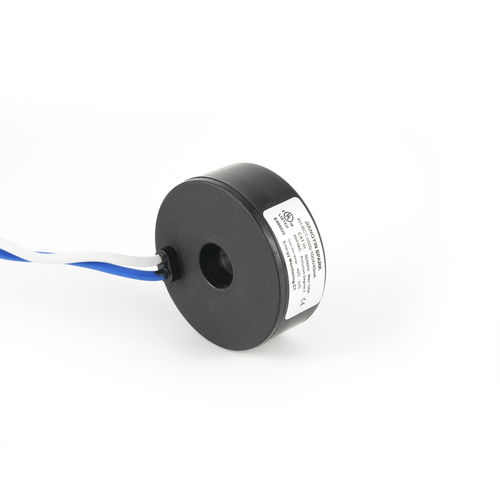

Solid-core current sensor BCT-0300
transformerfixedclamp

Solid-core current sensor - BCT-0300 - Jiangyin Spark Electronic Technology Co.,LTD - transformer / fixed / clamp
Solid-core current sensor - BCT-0300 - Jiangyin Spark Electronic Technology Co.,LTD - transformer / fixed / clamp
Solid-core current sensor - BCT-0300 - Jiangyin Spark Electronic Technology Co.,LTD - transformer / fixed / clamp - image - 2
Solid-core current sensor - BCT-0300 - Jiangyin Spark Electronic Technology Co.,LTD - transformer / fixed / clamp - image - 3
Solid-core current sensor - BCT-0300 - Jiangyin Spark Electronic Technology Co.,LTD - transformer / fixed / clamp - image - 4
Solid-core current sensor - BCT-0300 - Jiangyin Spark Electronic Technology Co.,LTD - transformer / fixed / clamp - image - 5
Solid-core current sensor - BCT-0300 - Jiangyin Spark Electronic Technology Co.,LTD - transformer / fixed / clamp - image - 6
Add to favorites
Compare this product


Characteristics

Technology
transformer
Mounting
fixed, clamp, plug-in
Electrical characteristics
AC, single-phase
Other characteristics
through-hole, high-accuracy, solid-core, monitoring
Primary current

Max.: 60 A

Min.: 0 A

Description

BCT-0300 Solid Core Current Transformer CTs Specifications: 1.Rated current:0-60A 2.Rated output:mA or mV(0.333V) 3.Rated Voltage：0.66KV 4.Insulation Voltage：5400V CATIII 600V or CATIV 250V 5.Rated Frequency：50HZ/60HZ 6.Operating Temperature：-35℃to 65℃ 7.Flame resistance：UL94-V0 8.Leads : UL 1015 18AWG-22AWG 9.Certificates: UL2808 and IEC61010-1 Features: 1.Small cost 2.Split core design ,Easier installation 3 .Build diode ,no high voltage danger 4.Good linearity at very low current Applications: Power metering Sub-metering for building, energy efficiency monitoring, consumption analysis, and cost allocation Power quality monitoring for distribution system equipment Condition monitoring for conveyors, pumps, etc. Hybrid inverter for home energy storage Distributed measurement systems
