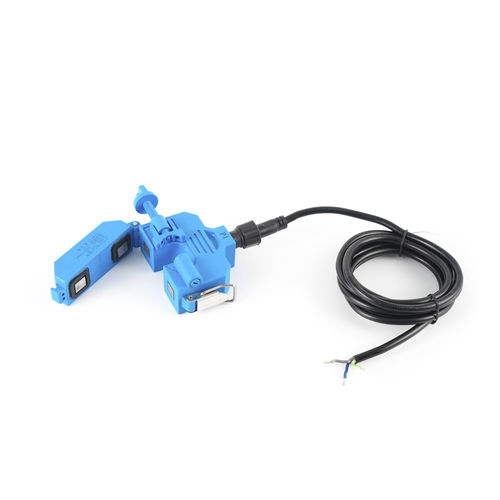

Current transformer FSCT-T20split-corefor outdoor servicesingle-phase
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- split-core
- Applications
- for outdoor service
- Electrical characteristics
- single-phase
- Mounting
- through-hole
- Norms
- IEC, RoHS
- Other characteristics
- toroidal, epoxy resin, AC, protection, open type, waterproof
- Secondary voltage
Max.: 3 V
0.3 V
Min.: 0 V
- Primary current
Max.: 600 A
Min.: 0 A
- Secondary current
Max.: 1 A
Min.: 0 A
- Frequency
Max.: 60 Hz
Min.: 50 Hz
Description
IP67 FSCT-T20 Outdoor Waterproof Split Core Current Transformer
SPECIFICATIONS:
1.Rated current:0-600A
2.Rated output:mA or mV
2.Insulation Voltage:3KV
3.Rated Frequency:50HZ/60HZ
4.Operating Temperature:-15℃to 60℃
5.Waterproof Class:IP67 Waterproof
6. Class:1.0 or 0.5
FEATURES:
1.Small cost
2.Split core design ,Easier installation
3 .Build diode ,no high voltage danger
4.Good linearity at very low current
