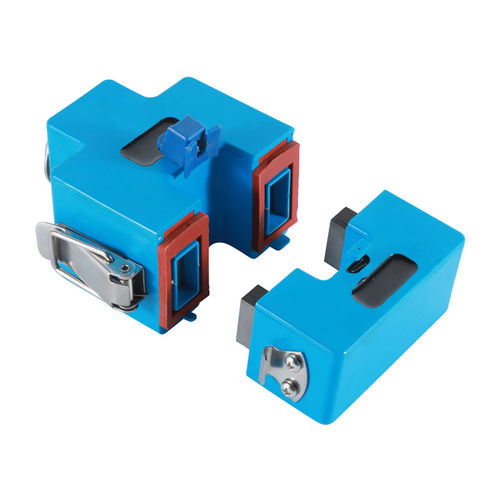

Current transformer FSCT-T40split-corefor outdoor servicesingle-phase
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- split-core
- Applications
- for outdoor service
- Electrical characteristics
- single-phase, low-voltage
- Mounting
- through-hole, plug-in
- Norms
- IEC, RoHS
- Other characteristics
- toroidal, epoxy resin, AC, open type, waterproof
- Secondary voltage
Min.: 0 V
Max.: 3 V
0.3 V
- Primary current
Min.: 0 A
Max.: 800 A
- Secondary current
Min.: 0 A
Max.: 5 A
5 A
- Frequency
Min.: 50 Hz
Max.: 60 Hz
Description
FSCT40 Split Core Current Transformer CTs
Specifications
Window Size:40mm
Input:0-800A
Output:5A,1A,mA,mV,V
Burden:2.5VA/5VA
Wire Lead:2*2.5mm² sheathed wire
Standard: GB/T 20840. 1 and . 2;
Pressure Voltage: 0. 4/0.66/0. 69/0. 72KV;
Accuracy:0.5S or 1.0;
Rated Frequency: 50/60HZ;
Rated Frequency: IP67;
Use environment:- 25'C to 50°C。
Applications
. Power quality monitoring
. Power instrument and meter
. Distributed measurement systems
. Measurement of current of power supply equipment below 10KV
. Microcomputer protection
