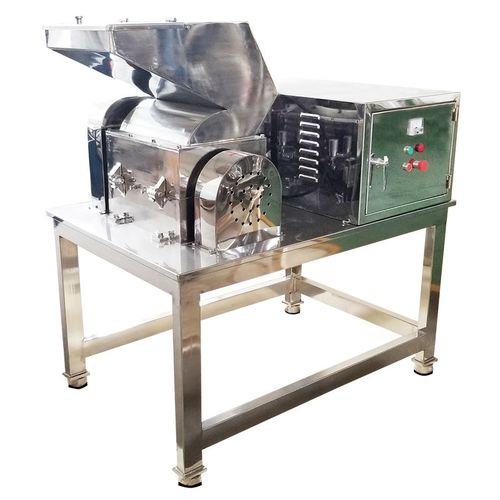

Blade mill QSJ serieshorizontalfoodfor rubber
Add to favorites
Compare this product
Characteristics
- Technology
- blade
- Orientation
- horizontal
- Product applications
- food, for rubber
- Sector
- for the food industry, for the chemical industry, medical
- Rotational speed
500 rpm
(3,142 rad.min-1)- Output
Max.: 1,500 kg/h
(3,307 lb/h)Min.: 30 kg/h
(66 lb/h)- Motor power
3 kW, 6 kW, 8 kW, 11 kW, 15 kW
(4.08 hp, 8.16 hp, 10.88 hp, 14.96 hp, 20.39 hp)- Machine length
900 mm, 1,000 mm, 1,100 mm, 1,300 mm, 15,000 mm
(35 in, 39 in, 43 in, 51 in, 591 in)- Machine width
700 mm, 800 mm, 850 mm, 950 mm, 1,100 mm
(28 in, 31 in, 33 in, 37 in, 43 in)- Machine height
1,100 mm, 1,200 mm, 1,300 mm, 1,450 mm, 1,600 mm
(43 in, 47 in, 51 in, 57 in, 63 in)- Machine weight
180 kg, 250 kg, 350 kg, 450 kg, 550 kg
(397 lb, 551 lb, 772 lb, 992 lb, 1,213 lb)
Description
The machine is applied in chemical, medicine and food industries for coarse crushing hard,tough materials, such as various chinese medicine,rubber,plastic,chemical materials,etc. It is also suitable for crushing fibrous materials.
Working Method
The machine adopts horizontal structure with multiple crushing blades, it is of steady performance and low vibration. Due to the optimized design angle between the blades, the crusher has better crushing effect,higher production volume,lower power consumption and noise than regular crushers.
