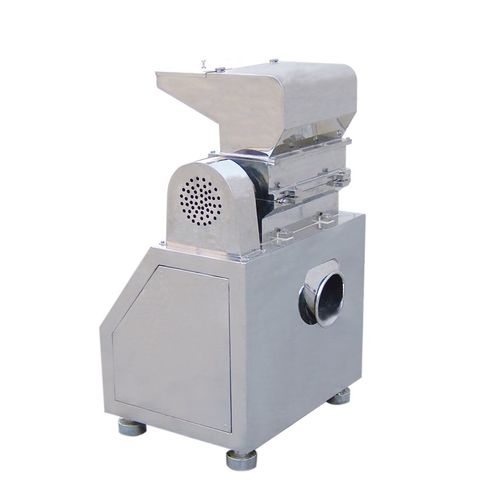

Rotor mill CSJ Series
horizontalfoodcompact

Rotor mill - CSJ Series - Jiangyin Xinda Medicine And Chemical Machinery Co., Ltd. - horizontal / food / compact
Rotor mill - CSJ Series - Jiangyin Xinda Medicine And Chemical Machinery Co., Ltd. - horizontal / food / compact
Rotor mill - CSJ Series - Jiangyin Xinda Medicine And Chemical Machinery Co., Ltd. - horizontal / food / compact - image - 2
Rotor mill - CSJ Series - Jiangyin Xinda Medicine And Chemical Machinery Co., Ltd. - horizontal / food / compact - image - 3
Rotor mill - CSJ Series - Jiangyin Xinda Medicine And Chemical Machinery Co., Ltd. - horizontal / food / compact - image - 4
Rotor mill - CSJ Series - Jiangyin Xinda Medicine And Chemical Machinery Co., Ltd. - horizontal / food / compact - image - 5
Rotor mill - CSJ Series - Jiangyin Xinda Medicine And Chemical Machinery Co., Ltd. - horizontal / food / compact - image - 6
Add to favorites
Compare this product


Characteristics

Technology
rotor
Orientation
horizontal
Product applications
food
Other characteristics
compact
Sector
for the chemical industry, for the pharmaceutical industry
Rotational speed

400 rpm
(2,513 rad.min-1)

Output

Min.: 10 kg/h
(22 lb/h)

Max.: 500 kg/h
(1,102 lb/h)

Motor power

2 kW, 3 kW, 6 kW
(2.72 hp, 4.08 hp, 8.16 hp)

Machine length

510 mm, 700 mm, 850 mm
(20 in, 28 in, 33 in)

Machine width

450 mm, 650 mm, 720 mm
(18 in, 26 in, 28 in)

Machine height

980 mm, 1,200 mm, 1,350 mm
(39 in, 47 in, 53 in)

Machine weight

120 kg, 250 kg, 360 kg
(265 lb, 551 lb, 794 lb)

Description

The machine is applied for industries such as pharmaceutics,chemical,metallurgy and foodstuff. It is used as specialized equipment for coarse crushing of material in preparatory process,and can crush hard and tough material like plastics and steel wire.Especially it is not limited by viscosity,hardness,softness or fiber shape of material and has good effect to all materials. Working Method The machine has horizontal crushing structure and the whole machine is made of stainlesssteel . Any raw material being fed into the grind chamber through the upper feeder stroked byhe revolving and fixed knives cut and grinded and then automatically runs to the exit by thecentrifugal force of revolving object . The machine is designed according to GMP standard with thecharacteristics of compact structure easy washing and low noise . So it is the most ideal newproduct in current crusher market.
